scPDB - 4hs4 entry

Protein Data Bank Entry:

PDB ID : 4hs4

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2012-10-29

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Chromate reductase
ID:	D5QFC5_KOMHA
AC:	D5QFC5
Organism:	Komagataeibacter hansenii ATCC 23769
Reign:	Bacteria
TaxID:	714995
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
G	27 %
H	73 %

Ligand binding site composition:

B-Factor:	45.520
Number of residues:	40
Including
Standard Amino Acids:	39
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.194	691.875

% Hydrophobic	% Polar
37.07	62.93
According to VolSite

Ligand :

HET Code:	FMN
Formula:	C17H19N4O9P
Molecular weight:	454.328 g/mol
DrugBank ID:	DB03247
Buried Surface Area:	67.1 %
Polar Surface area:	217.05 Å2

Number of
H-Bond Acceptors:	12
H-Bond Donors:	4
Rings:	3
Aromatic rings:	1
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
-3.119	23.2747	39.5931

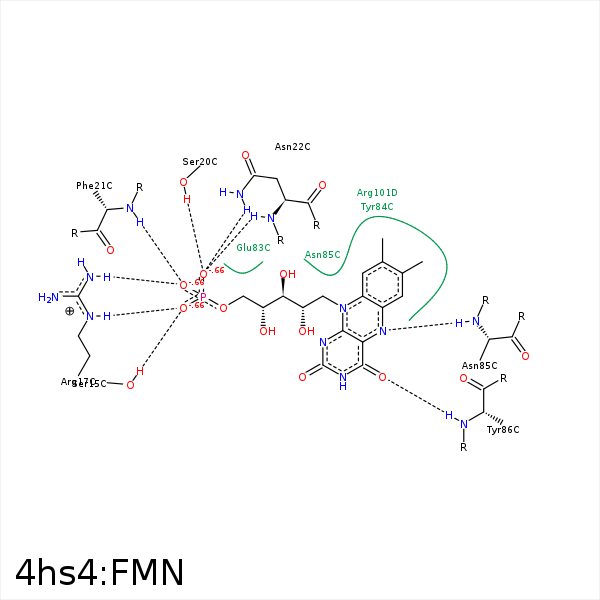

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3P	OG	SER- 15	2.64	167.85	H-Bond (Protein Donor)	false
O1P	CZ	ARG- 17	3.55	0	Ionic (Protein Cationic)	false
O3P	CZ	ARG- 17	3.95	0	Ionic (Protein Cationic)	false
O1P	NH2	ARG- 17	2.89	161.58	H-Bond (Protein Donor)	false
O1P	NE	ARG- 17	3.34	137.83	H-Bond (Protein Donor)	false
O3P	NE	ARG- 17	2.9	154.53	H-Bond (Protein Donor)	false
O2P	OG	SER- 20	2.53	171.11	H-Bond (Protein Donor)	false
O1P	N	PHE- 21	2.91	164.35	H-Bond (Protein Donor)	false
O5'	ND2	ASN- 22	3.46	129.73	H-Bond (Protein Donor)	false
O2P	N	ASN- 22	2.96	165.33	H-Bond (Protein Donor)	false
O2P	ND2	ASN- 22	2.95	165.36	H-Bond (Protein Donor)	false
C8M	CE2	TYR- 51	3.47	0	Hydrophobic	false
C5'	CB	PRO- 82	3.64	0	Hydrophobic	false
N3	OE2	GLU- 83	3.48	121.36	H-Bond (Ligand Donor)	false
C7M	CG	TYR- 84	4.13	0	Hydrophobic	false
C8M	CE1	TYR- 84	4.29	0	Hydrophobic	false
C5'	CE1	TYR- 84	4.48	0	Hydrophobic	false
C6	CB	TYR- 84	3.48	0	Hydrophobic	false
N5	N	ASN- 85	2.75	159.86	H-Bond (Protein Donor)	false
O4	N	TYR- 86	3.01	165.74	H-Bond (Protein Donor)	false
C7M	CB	ASP- 97	4.24	0	Hydrophobic	false
C7M	CD	ARG- 101	3.46	0	Hydrophobic	false
O2	OG	SER- 118	3.43	129.03	H-Bond (Protein Donor)	false
C3'	CG	PRO- 119	4.11	0	Hydrophobic	false
