scPDB - 4gv0 entry

Protein Data Bank Entry:

PDB ID : 4gv0

Resolution :1.900 Å

Experimental Method : X-ray

Deposition Date : 2012-08-30

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Poly [ADP-ribose] polymerase 3
ID:	PARP3_HUMAN
AC:	Q9Y6F1
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.4.2.30

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	14.035
Number of residues:	32
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.958	573.750

% Hydrophobic	% Polar
44.71	55.29
According to VolSite

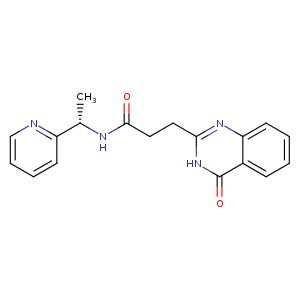

Ligand :

HET Code:	8ME
Formula:	C18H18N4O2
Molecular weight:	322.361 g/mol
DrugBank ID:	-
Buried Surface Area:	66.01 %
Polar Surface area:	83.44 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	2
Rings:	3
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	5

Mass center Coordinates

X	Y	Z
20.0739	-4.6885	12.4383

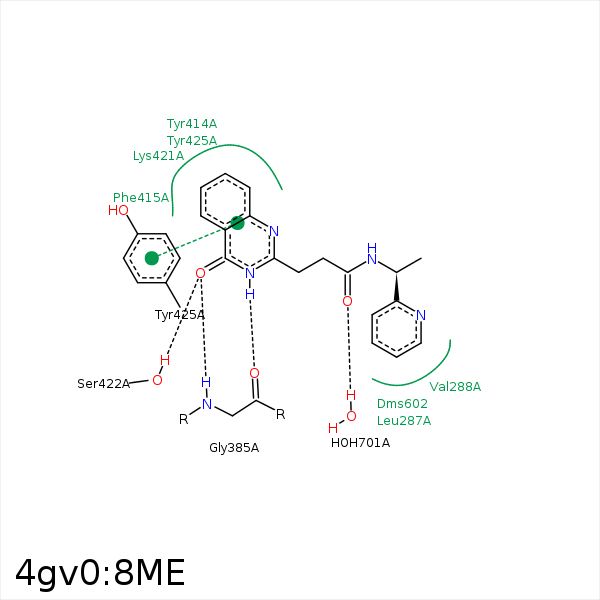

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
CAA	CB	ASP- 284	3.85	0	Hydrophobic	false
CAA	CD1	LEU- 287	4.25	0	Hydrophobic	false
CAD	CB	LEU- 287	3.94	0	Hydrophobic	false
CAI	CG2	VAL- 288	4.08	0	Hydrophobic	false
OAC	N	GLY- 385	2.79	154.17	H-Bond (Protein Donor)	false
NAQ	O	GLY- 385	2.75	156.62	H-Bond (Ligand Donor)	false
CAE	CG1	VAL- 390	4.02	0	Hydrophobic	false
CAD	SD	MET- 402	4.32	0	Hydrophobic	false
CAJ	CB	TYR- 414	3.38	0	Hydrophobic	false
CAK	CB	ALA- 416	4.12	0	Hydrophobic	false
CAG	CG	LYS- 421	4.04	0	Hydrophobic	false
OAC	OG	SER- 422	2.66	162.58	H-Bond (Protein Donor)	false
CAM	CD1	TYR- 425	3.83	0	Hydrophobic	false
CAF	CG	GLU- 514	3.86	0	Hydrophobic	false
OAB	O	HOH- 701	2.61	142.8	H-Bond (Protein Donor)	false
