scPDB - 4foj entry

Protein Data Bank Entry:

PDB ID : 4foj

Resolution :1.550 Å

Experimental Method : X-ray

Deposition Date : 2012-06-20

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Uncharacterized protein
ID:	Q8PJX9_XANAC
AC:	Q8PJX9
Organism:	Xanthomonas axonopodis pv. citri
Reign:	Bacteria
TaxID:	190486
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	16.216
Number of residues:	40
Including
Standard Amino Acids:	35
Non Standard Amino Acids:	0
Water Molecules:	5
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.486	506.250

% Hydrophobic	% Polar
56.00	44.00
According to VolSite

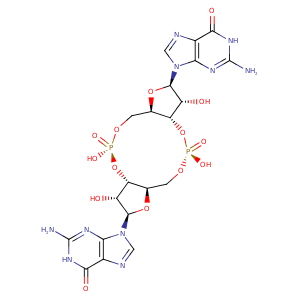

Ligand :

HET Code:	C2E
Formula:	C20H22N10O14P2
Molecular weight:	688.395 g/mol
DrugBank ID:	-
Buried Surface Area:	56.71 %
Polar Surface area:	366.32 Å2

Number of
H-Bond Acceptors:	20
H-Bond Donors:	6
Rings:	7
Aromatic rings:	2
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
1.17189	23.4488	1.64974

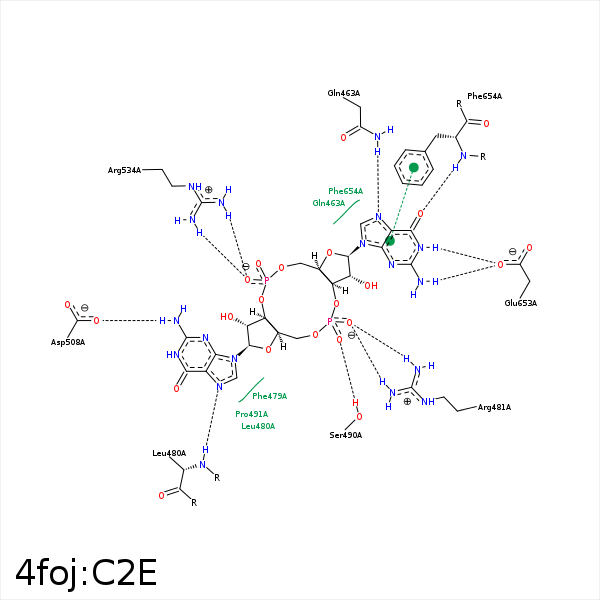

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N71	NE2	GLN- 463	3.3	164.26	H-Bond (Protein Donor)	false
C2A	CE1	PHE- 479	3.61	0	Hydrophobic	false
N7	N	LEU- 480	3.06	174.21	H-Bond (Protein Donor)	false
O2P	NH1	ARG- 481	2.81	148.21	H-Bond (Protein Donor)	false
O2P	NH2	ARG- 481	3.11	134.39	H-Bond (Protein Donor)	false
O1P	OG	SER- 490	2.56	175.92	H-Bond (Protein Donor)	false
C1'	CB	PRO- 491	3.84	0	Hydrophobic	false
C1'	CE	MET- 495	4.28	0	Hydrophobic	false
N2	OD1	ASP- 508	3.01	149.7	H-Bond (Ligand Donor)	false
O11	NH2	ARG- 534	2.95	142.01	H-Bond (Protein Donor)	false
O11	NH1	ARG- 534	2.83	150.09	H-Bond (Protein Donor)	false
N11	OE1	GLU- 653	2.85	151.46	H-Bond (Ligand Donor)	false
N21	OE1	GLU- 653	3.05	140.18	H-Bond (Ligand Donor)	false
C5A	CZ	PHE- 654	3.72	0	Hydrophobic	false
C4A	CE1	PHE- 654	4.49	0	Hydrophobic	false
O61	N	PHE- 654	2.78	160.15	H-Bond (Protein Donor)	false
C2A	CG2	THR- 680	4.01	0	Hydrophobic	false
