scPDB - 4f3x entry

Protein Data Bank Entry:

PDB ID : 4f3x

Resolution :2.010 Å

Experimental Method : X-ray

Deposition Date : 2012-05-09

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Putative aldehyde dehydrogenase
ID:	Q92ND9_RHIME
AC:	Q92ND9
Organism:	Rhizobium meliloti
Reign:	Bacteria
TaxID:	266834
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	48.327
Number of residues:	49
Including
Standard Amino Acids:	47
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.083	1414.125

% Hydrophobic	% Polar
43.44	56.56
According to VolSite

Ligand :

HET Code:	NAD
Formula:	C21H26N7O14P2
Molecular weight:	662.417 g/mol
DrugBank ID:	-
Buried Surface Area:	68.51 %
Polar Surface area:	343.54 Å2

Number of
H-Bond Acceptors:	18
H-Bond Donors:	6
Rings:	5
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	1
Rule of Five Violation:	3
Rotatable Bonds:	11

Mass center Coordinates

X	Y	Z
-26.5302	21.7194	5.11211

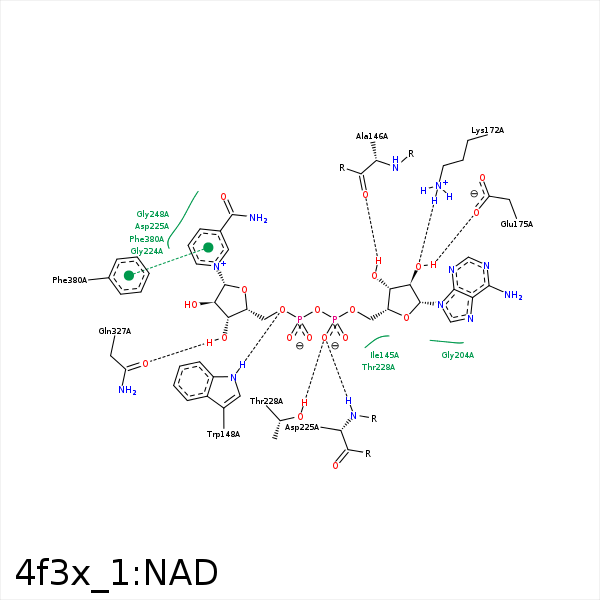

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C1B	CG2	ILE- 145	3.23	0	Hydrophobic	false
O3B	O	ALA- 146	2.65	157.31	H-Bond (Ligand Donor)	false
C5B	CB	PRO- 147	4.22	0	Hydrophobic	false
O5D	NE1	TRP- 148	2.98	140.53	H-Bond (Protein Donor)	false
C5D	CZ2	TRP- 148	3.43	0	Hydrophobic	false
C3D	CZ2	TRP- 148	4.3	0	Hydrophobic	false
O2B	NZ	LYS- 172	2.64	168.32	H-Bond (Protein Donor)	false
C3B	CB	SER- 174	4.42	0	Hydrophobic	false
O2B	OE1	GLU- 175	2.58	163.37	H-Bond (Ligand Donor)	false
C1B	CD1	ILE- 222	4.15	0	Hydrophobic	false
C4B	CD1	ILE- 222	3.87	0	Hydrophobic	false
O1A	N	ASP- 225	2.75	172.84	H-Bond (Protein Donor)	false
O3	N	ASP- 225	3.4	123.78	H-Bond (Protein Donor)	false
C1B	CG2	THR- 228	4.32	0	Hydrophobic	false
C4N	SG	CYS- 280	3.21	0	Hydrophobic	false
O3D	OE1	GLN- 327	3.19	141.47	H-Bond (Ligand Donor)	false
C2D	CD2	PHE- 380	3.78	0	Hydrophobic	false
