scPDB - 4ca6 entry

Protein Data Bank Entry:

PDB ID : 4ca6

Resolution :1.910 Å

Experimental Method : X-ray

Deposition Date : 2013-10-07

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:	9.390	9.390	9.390	0.000	9.390	1

List of CHEMBLId :

CHEMBL570732

Binding Site :

Uniprot Annotation

Name:	Angiotensin-converting enzyme
ID:	ACE_HUMAN
AC:	P12821
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	3.2.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	19.720
Number of residues:	50
Including
Standard Amino Acids:	48
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:	ZN

Cavity properties

Ligandability	Volume (Å3)
0.168	2615.625

% Hydrophobic	% Polar
34.19	65.81
According to VolSite

Ligand :

HET Code:	3EF
Formula:	C38H36N3O9P
Molecular weight:	709.681 g/mol
DrugBank ID:	-
Buried Surface Area:	61.3 %
Polar Surface area:	203.76 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	3
Rings:	5
Aromatic rings:	5
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	17

Mass center Coordinates

X	Y	Z
1.25996	-16.8837	-21.7223

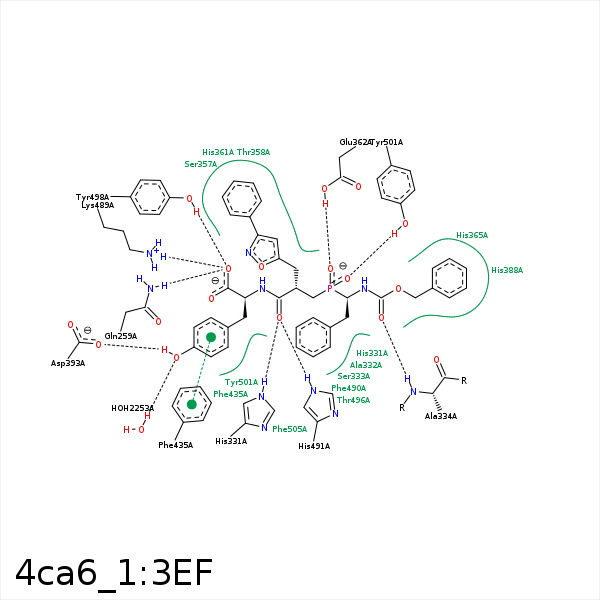

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O	NE2	GLN- 259	2.97	161.63	H-Bond (Protein Donor)	false
OAC	NE2	HIS- 331	2.69	167.79	H-Bond (Protein Donor)	false
CBC	CB	ALA- 332	4.21	0	Hydrophobic	false
CAS	CB	SER- 333	3.72	0	Hydrophobic	false
OAB	N	ALA- 334	2.99	161.21	H-Bond (Protein Donor)	false
CAJ	CB	SER- 357	3.43	0	Hydrophobic	false
CBC	CG2	THR- 358	4.42	0	Hydrophobic	false
CBT	CB	THR- 358	4.17	0	Hydrophobic	false
CAU	CB	HIS- 361	3.53	0	Hydrophobic	false
OAG	OE1	GLU- 362	2.57	144.88	H-Bond (Protein Donor)	false
CBB	CB	HIS- 365	4.32	0	Hydrophobic	false
DuAr	DuAr	HIS- 388	3.76	0	Aromatic Face/Face	false
CAL	CB	HIS- 388	3.44	0	Hydrophobic	false
OH	OD2	ASP- 393	2.79	144.33	H-Bond (Ligand Donor)	false
CB	CZ	PHE- 435	3.89	0	Hydrophobic	false
O	NZ	LYS- 489	2.69	168.93	H-Bond (Protein Donor)	false
O	NZ	LYS- 489	2.69	0	Ionic (Protein Cationic)	false
OXT	NZ	LYS- 489	3.98	0	Ionic (Protein Cationic)	false
CBE	CE2	PHE- 490	4.48	0	Hydrophobic	false
OAC	NE2	HIS- 491	2.87	130.74	H-Bond (Protein Donor)	false
CAN	CG2	THR- 496	3.67	0	Hydrophobic	false
O	OH	TYR- 498	2.57	154.06	H-Bond (Protein Donor)	false
CB	CZ	TYR- 498	4.22	0	Hydrophobic	false
OAD	OH	TYR- 501	2.69	167.52	H-Bond (Protein Donor)	false
CB	CD1	TYR- 501	3.58	0	Hydrophobic	false
CD2	CD1	TYR- 501	3.37	0	Hydrophobic	false
CZ	CE1	PHE- 505	3.49	0	Hydrophobic	false
OAD	ZN	ZN- 1001	2.12	0	Metal Acceptor	false
OAG	ZN	ZN- 1001	2.54	0	Metal Acceptor	false
OH	O	HOH- 2253	2.73	137.87	H-Bond (Protein Donor)	false
