scPDB - 4b5b entry

Protein Data Bank Entry:

PDB ID : 4b5b

Resolution :2.060 Å

Experimental Method : X-ray

Deposition Date : 2012-08-03

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Glucose-1-phosphate thymidylyltransferase
ID:	Q9HU22_PSEAE
AC:	Q9HU22
Organism:	Pseudomonas aeruginosa
Reign:	Bacteria
TaxID:	208964
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
C	100 %

Ligand binding site composition:

B-Factor:	33.634
Number of residues:	34
Including
Standard Amino Acids:	31
Non Standard Amino Acids:	1
Water Molecules:	2
Cofactors:
Metals:	CL

Cavity properties

Ligandability	Volume (Å3)
0.952	604.125

% Hydrophobic	% Polar
47.49	52.51
According to VolSite

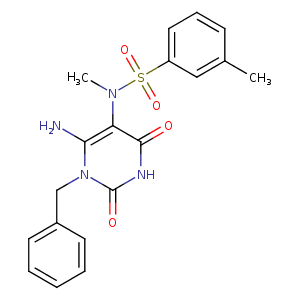

Ligand :

HET Code:	BBE
Formula:	C19H20N4O4S
Molecular weight:	400.451 g/mol
DrugBank ID:	-
Buried Surface Area:	61.16 %
Polar Surface area:	121.19 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	2
Rings:	3
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	5

Mass center Coordinates

X	Y	Z
32.5011	-19.6174	56.778

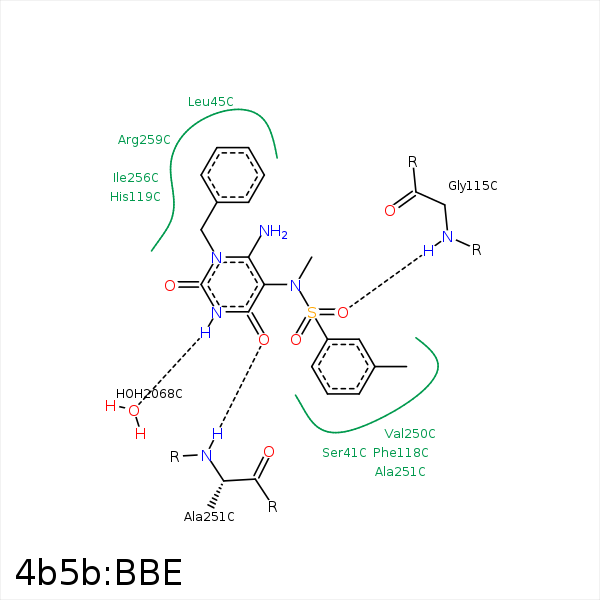

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
CAL	CD2	TYR- 38	4.2	0	Hydrophobic	false
CAT	CB	SER- 41	3.38	0	Hydrophobic	false
CAK	CD1	LEU- 45	4.17	0	Hydrophobic	false
CAJ	CD2	LEU- 45	3.67	0	Hydrophobic	false
CBA	CD1	LEU- 45	3.63	0	Hydrophobic	false
CAB	CD1	TYR- 114	4.07	0	Hydrophobic	false
OAC	N	GLY- 115	3.13	173.28	H-Bond (Protein Donor)	false
CAX	CB	HIS- 119	3.88	0	Hydrophobic	false
CAB	CG2	VAL- 250	4.47	0	Hydrophobic	false
CAR	CG1	VAL- 250	3.96	0	Hydrophobic	false
OAA	N	ALA- 251	2.98	168.51	H-Bond (Protein Donor)	false
CAL	CB	ALA- 251	3.97	0	Hydrophobic	false
CAZ	CG2	ILE- 256	4.33	0	Hydrophobic	false
CAK	CD1	ILE- 256	3.6	0	Hydrophobic	false
CAZ	CB	ARG- 259	3.8	0	Hydrophobic	false
CAY	CD	ARG- 259	3.71	0	Hydrophobic	false
NAD	O	HOH- 2068	2.73	148.22	H-Bond (Ligand Donor)	false
