Protein Data Bank Entry:

PDB ID : 4b05

Resolution :1.800 Å

Experimental Method : X-ray

Deposition Date : 2012-06-28

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Beta-secretase 1
ID:	BACE1_HUMAN
AC:	P56817
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	3.4.23.46

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	23.999
Number of residues:	38
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.731	796.500

% Hydrophobic	% Polar
32.63	67.37
According to VolSite

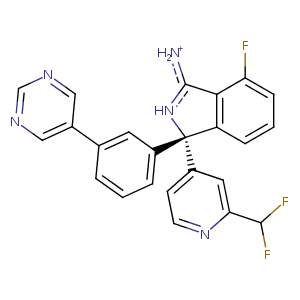

Ligand :

HET Code:	32D
Formula:	C24H17F3N5
Molecular weight:	432.420 g/mol
DrugBank ID:	DB12368
Buried Surface Area:	62.67 %
Polar Surface area:	78.66 Å2

Number of
H-Bond Acceptors:	3
H-Bond Donors:	2
Rings:	5
Aromatic rings:	4
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	4

Mass center Coordinates

X	Y	Z
5.36975	1.93266	-20.8909

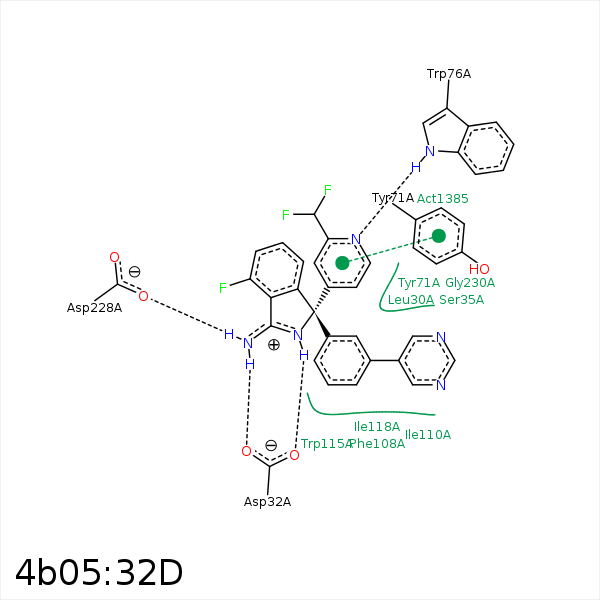

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C15	CD2	LEU- 30	4.1	0	Hydrophobic	false
C8	OD1	ASP- 32	3.58	0	Ionic (Ligand Cationic)	false
C8	OD2	ASP- 32	3.33	0	Ionic (Ligand Cationic)	false
N9	OD2	ASP- 32	2.58	152.31	H-Bond (Ligand Donor)	false
N34	OD1	ASP- 32	2.84	165.36	H-Bond (Ligand Donor)	false
C29	CB	SER- 35	3.82	0	Hydrophobic	false
F31	CB	SER- 35	3.21	0	Hydrophobic	false
F31	CB	ASN- 37	3.58	0	Hydrophobic	false
F32	CB	ALA- 39	3.98	0	Hydrophobic	false
N27	NE1	TRP- 76	3.1	158.71	H-Bond (Protein Donor)	false
C30	CE2	TRP- 76	4.04	0	Hydrophobic	false
F32	CZ	PHE- 108	3.91	0	Hydrophobic	false
C29	CD1	ILE- 118	3.93	0	Hydrophobic	false
F32	CB	ILE- 118	3.59	0	Hydrophobic	false
F31	CG2	ILE- 118	4.28	0	Hydrophobic	false
C13	CD1	ILE- 118	3.52	0	Hydrophobic	false
N34	OD2	ASP- 228	2.9	153.16	H-Bond (Ligand Donor)	false
F7	CB	THR- 231	4.3	0	Hydrophobic	false
