scPDB - 3utf entry

Protein Data Bank Entry:

PDB ID : 3utf

Resolution :2.250 Å

Experimental Method : X-ray

Deposition Date : 2011-11-25

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	UDP-galactopyranose mutase
ID:	Q4W1X2_ASPFM
AC:	Q4W1X2
Organism:	Neosartorya fumigata
Reign:	Eukaryota
TaxID:	746128
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	25.068
Number of residues:	63
Including
Standard Amino Acids:	60
Non Standard Amino Acids:	0
Water Molecules:	3
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.059	1414.125

% Hydrophobic	% Polar
37.95	62.05
According to VolSite

Ligand :

HET Code:	FDA
Formula:	C27H33N9O15P2
Molecular weight:	785.550 g/mol
DrugBank ID:	-
Buried Surface Area:	70.12 %
Polar Surface area:	381.04 Å2

Number of
H-Bond Acceptors:	21
H-Bond Donors:	9
Rings:	6
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
26.9492	106.134	220.979

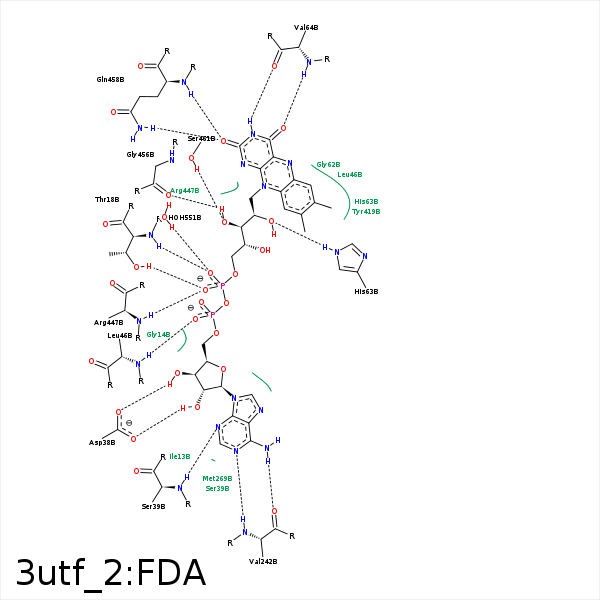

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CG	PRO- 17	3.71	0	Hydrophobic	false
O1P	N	THR- 18	2.8	150.43	H-Bond (Protein Donor)	false
O2P	OG1	THR- 18	2.81	171.68	H-Bond (Protein Donor)	false
O3B	OD2	ASP- 38	2.85	175.38	H-Bond (Ligand Donor)	false
O2B	OD2	ASP- 38	3.41	135.14	H-Bond (Ligand Donor)	false
O2B	OD1	ASP- 38	2.84	152.38	H-Bond (Ligand Donor)	false
N3A	N	SER- 39	3.15	146.96	H-Bond (Protein Donor)	false
O2A	N	LEU- 46	2.98	154.4	H-Bond (Protein Donor)	false
C8M	CD2	LEU- 46	4.33	0	Hydrophobic	false
C8M	CG1	VAL- 60	3.99	0	Hydrophobic	false
O2'	NE2	HIS- 63	2.95	154.57	H-Bond (Protein Donor)	false
DuAr	DuAr	HIS- 63	3.95	0	Aromatic Face/Face	false
N3	O	VAL- 64	2.71	161.89	H-Bond (Ligand Donor)	false
O4	N	VAL- 64	2.93	166.82	H-Bond (Protein Donor)	false
N6A	O	VAL- 242	3.08	169.07	H-Bond (Ligand Donor)	false
N1A	N	VAL- 242	3.03	171.38	H-Bond (Protein Donor)	false
C7M	CG2	THR- 295	3.81	0	Hydrophobic	false
C7M	CE2	TYR- 419	3.68	0	Hydrophobic	false
C1'	CD	ARG- 447	4.24	0	Hydrophobic	false
C3'	CD	ARG- 447	3.93	0	Hydrophobic	false
C5'	CB	ARG- 447	3.75	0	Hydrophobic	false
O2P	N	ARG- 447	2.96	159.14	H-Bond (Protein Donor)	false
O3'	O	GLY- 456	2.61	170.01	H-Bond (Ligand Donor)	false
N1	N	GLN- 458	3.33	133.53	H-Bond (Protein Donor)	false
O2	N	GLN- 458	2.83	159.66	H-Bond (Protein Donor)	false
O2	NE2	GLN- 458	3.15	132.5	H-Bond (Protein Donor)	false
C2'	CG	GLN- 458	4.04	0	Hydrophobic	false
O3'	OG	SER- 461	3.01	157.85	H-Bond (Protein Donor)	false
C5'	CB	SER- 461	4.05	0	Hydrophobic	false
O1P	O	HOH- 551	2.56	157.21	H-Bond (Protein Donor)	false
