scPDB - 3u9d entry

Protein Data Bank Entry:

PDB ID : 3u9d

Resolution :2.500 Å

Experimental Method : X-ray

Deposition Date : 2011-10-18

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Actin, alpha skeletal muscle
ID:	ACTS_RAT
AC:	P68136
Organism:	Rattus norvegicus
Reign:	Eukaryota
TaxID:	10116
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
C	100 %

Ligand binding site composition:

B-Factor:	22.722
Number of residues:	43
Including
Standard Amino Acids:	42
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.550	891.000

% Hydrophobic	% Polar
47.73	52.27
According to VolSite

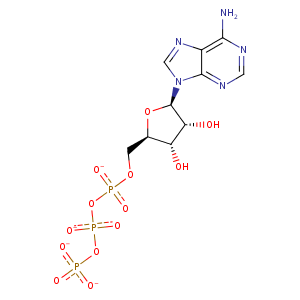

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	66.93 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
-11.86	-39.6033	-51.3717

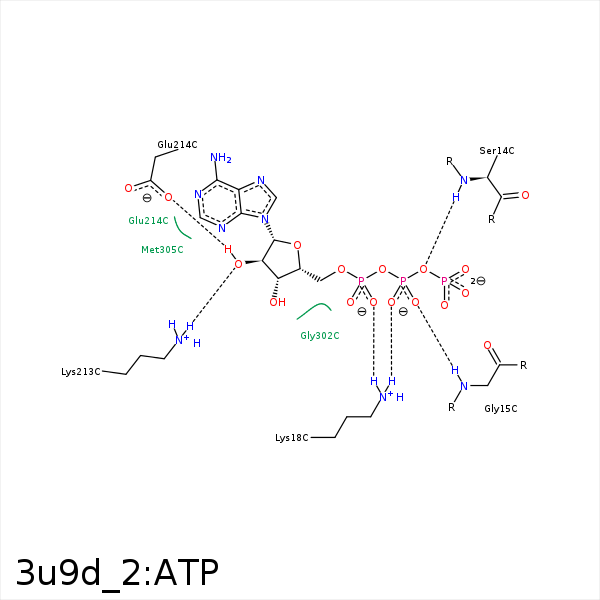

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3B	N	SER- 14	3.31	173.28	H-Bond (Protein Donor)	false
O2B	N	GLY- 15	3.23	171.6	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 18	2.98	139.38	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 18	3.18	141.13	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 18	2.98	0	Ionic (Protein Cationic)	false
O2B	NZ	LYS- 18	3.52	0	Ionic (Protein Cationic)	false
O1A	NZ	LYS- 18	3.76	0	Ionic (Protein Cationic)	false
O2A	NZ	LYS- 18	3.18	0	Ionic (Protein Cationic)	false
O2'	NZ	LYS- 213	2.59	173.7	H-Bond (Protein Donor)	false
O2'	OE2	GLU- 214	3.17	148.43	H-Bond (Ligand Donor)	false
O1G	MG	MG- 502	2.54	0	Metal Acceptor	false
O3G	MG	MG- 502	2.16	0	Metal Acceptor	false
O1B	MG	MG- 502	2.45	0	Metal Acceptor	false
