scPDB - 3ssm entry

Protein Data Bank Entry:

PDB ID : 3ssm

Resolution :2.250 Å

Experimental Method : X-ray

Deposition Date : 2011-07-08

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Mycinamicin VI 2''-O-methyltransferase
ID:	MYCE_MICGR
AC:	Q83WF2
Organism:	Micromonospora griseorubida
Reign:	Bacteria
TaxID:	28040
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	6 %
D	94 %

Ligand binding site composition:

B-Factor:	57.248
Number of residues:	37
Including
Standard Amino Acids:	35
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
1.006	830.250

% Hydrophobic	% Polar
52.85	47.15
According to VolSite

Ligand :

HET Code:	SAH
Formula:	C14H20N6O5S
Molecular weight:	384.411 g/mol
DrugBank ID:	DB01752
Buried Surface Area:	73.38 %
Polar Surface area:	212.38 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
8.88335	114.15	8.93185

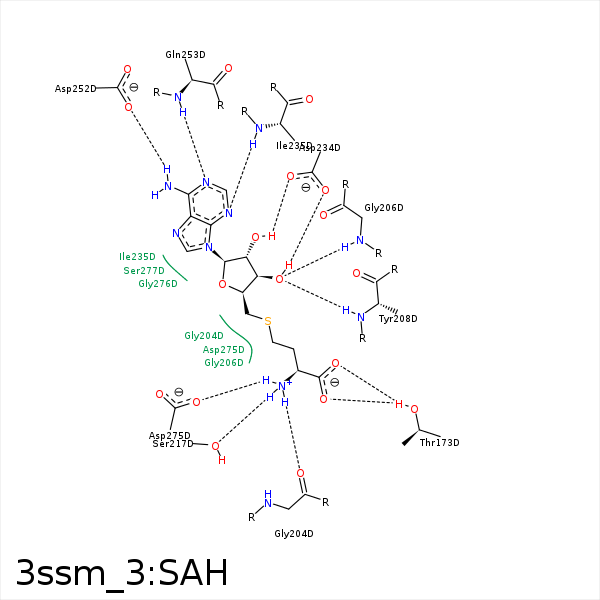

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O	OG1	THR- 173	3.14	173.19	H-Bond (Protein Donor)	false
OXT	OG1	THR- 173	3.11	129.57	H-Bond (Protein Donor)	false
OXT	NZ	LYS- 175	3.29	0	Ionic (Protein Cationic)	false
N	OE2	GLU- 202	3.22	120.67	H-Bond (Ligand Donor)	false
N	OE2	GLU- 202	3.22	0	Ionic (Ligand Cationic)	false
N	O	GLY- 204	2.78	140.77	H-Bond (Ligand Donor)	false
O3'	N	GLY- 206	3.09	127.93	H-Bond (Protein Donor)	false
SD	CE1	TYR- 208	3.52	0	Hydrophobic	false
C3'	CG	TYR- 208	3.69	0	Hydrophobic	false
C2'	CD2	TYR- 208	3.76	0	Hydrophobic	false
C5'	CZ	TYR- 208	3.61	0	Hydrophobic	false
O3'	N	TYR- 208	3.2	143.24	H-Bond (Protein Donor)	false
N	OG	SER- 217	3.26	158.1	H-Bond (Ligand Donor)	false
O3'	OD2	ASP- 234	2.86	143.08	H-Bond (Ligand Donor)	false
O2'	OD1	ASP- 234	2.71	157.06	H-Bond (Ligand Donor)	false
O2'	OD2	ASP- 234	3.3	136.47	H-Bond (Ligand Donor)	false
N3	N	ILE- 235	3.19	142.26	H-Bond (Protein Donor)	false
N6	OD1	ASP- 252	2.9	160.78	H-Bond (Ligand Donor)	false
N1	N	GLN- 253	2.89	165.57	H-Bond (Protein Donor)	false
N	OD2	ASP- 275	2.75	155.01	H-Bond (Ligand Donor)	false
N	OD2	ASP- 275	2.75	0	Ionic (Ligand Cationic)	false
