Protein Data Bank Entry:

PDB ID : 3shr

Resolution :2.500 Å

Experimental Method : X-ray

Deposition Date : 2011-06-16

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	cGMP-dependent protein kinase 1
ID:	KGP1_BOVIN
AC:	P00516
Organism:	Bos taurus
Reign:	Eukaryota
TaxID:	9913
EC Number:	2.7.11.12

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	33.299
Number of residues:	22
Including
Standard Amino Acids:	22
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.479	239.625

% Hydrophobic	% Polar
49.30	50.70
According to VolSite

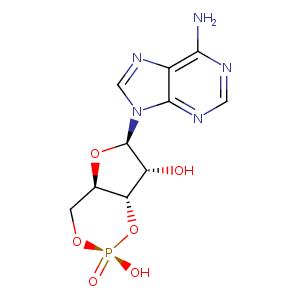

Ligand :

HET Code:	CMP
Formula:	C10H11N5O6P
Molecular weight:	328.198 g/mol
DrugBank ID:	DB02527
Buried Surface Area:	69.61 %
Polar Surface area:	167.48 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	2
Rings:	4
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	1

Mass center Coordinates

X	Y	Z
-52.6513	-3.49059	-39.8564

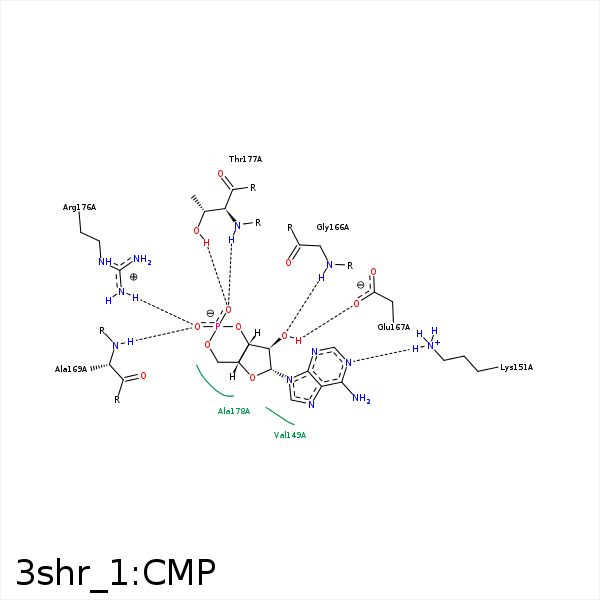

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C5'	CG2	ILE- 130	4.03	0	Hydrophobic	false
N1	NZ	LYS- 151	3.27	160.63	H-Bond (Protein Donor)	false
C1'	CB	PHE- 165	4.08	0	Hydrophobic	false
O3'	N	GLY- 166	3.48	124.98	H-Bond (Protein Donor)	false
O2'	N	GLY- 166	2.77	153.35	H-Bond (Protein Donor)	false
C3'	CB	LEU- 168	3.89	0	Hydrophobic	false
C2'	CD2	LEU- 168	4.04	0	Hydrophobic	false
O3'	N	LEU- 168	3.42	132.82	H-Bond (Protein Donor)	false
O1P	N	ALA- 169	2.83	153.15	H-Bond (Protein Donor)	false
O1P	NH2	ARG- 176	2.96	137.47	H-Bond (Protein Donor)	false
O2P	OG1	THR- 177	2.58	171.25	H-Bond (Protein Donor)	false
O2P	N	THR- 177	2.87	167.55	H-Bond (Protein Donor)	false
C5'	CB	ALA- 178	4.12	0	Hydrophobic	false
C5'	CG2	VAL- 180	4.07	0	Hydrophobic	false
