scPDB - 3rp8 entry

Protein Data Bank Entry:

PDB ID : 3rp8

Resolution :1.970 Å

Experimental Method : X-ray

Deposition Date : 2011-04-26

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	FAD-dependent urate hydroxylase
ID:	HPXO_KLEP7
AC:	A6T923
Organism:	Klebsiella pneumoniae subsp. pneumoniae
Reign:	Bacteria
TaxID:	272620
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	23.643
Number of residues:	61
Including
Standard Amino Acids:	55
Non Standard Amino Acids:	1
Water Molecules:	5
Cofactors:
Metals:	CL

Cavity properties

Ligandability	Volume (Å3)
0.962	1177.875

% Hydrophobic	% Polar
38.11	61.89
According to VolSite

Ligand :

HET Code:	FAD
Formula:	C27H31N9O15P2
Molecular weight:	783.534 g/mol
DrugBank ID:	DB03147
Buried Surface Area:	57.76 %
Polar Surface area:	381.7 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	7
Rings:	6
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
5.92309	26.6282	0.896019

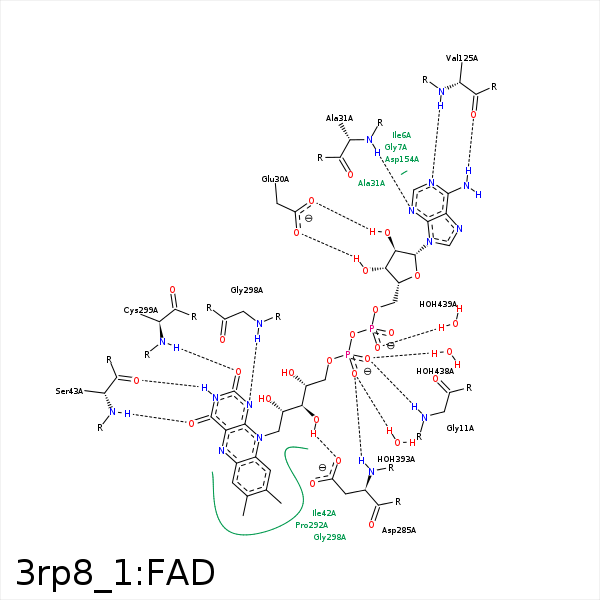

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CD1	ILE- 10	4.26	0	Hydrophobic	false
O2P	N	GLY- 11	2.8	155.25	H-Bond (Protein Donor)	false
O3B	OE1	GLU- 30	2.81	169.93	H-Bond (Ligand Donor)	false
O3B	OE2	GLU- 30	3.32	130.25	H-Bond (Ligand Donor)	false
N3A	N	ALA- 31	3.13	140.57	H-Bond (Protein Donor)	false
C9A	CG2	ILE- 42	4.13	0	Hydrophobic	false
C2'	CG2	ILE- 42	4.44	0	Hydrophobic	false
N3	O	SER- 43	2.94	158.36	H-Bond (Ligand Donor)	false
O4	N	SER- 43	2.87	167.22	H-Bond (Protein Donor)	false
N6A	O	VAL- 125	3.1	163.23	H-Bond (Ligand Donor)	false
N1A	N	VAL- 125	2.97	154.22	H-Bond (Protein Donor)	false
O3'	OD1	ASP- 285	2.75	162.91	H-Bond (Ligand Donor)	false
C5'	CB	ASP- 285	4.29	0	Hydrophobic	false
O1P	N	ASP- 285	2.88	164.05	H-Bond (Protein Donor)	false
C7M	CG	PRO- 292	4.08	0	Hydrophobic	false
C6	CB	PRO- 292	3.41	0	Hydrophobic	false
N1	N	GLY- 298	2.89	168.71	H-Bond (Protein Donor)	false
O2	N	CYS- 299	2.89	152.29	H-Bond (Protein Donor)	false
O1P	O	HOH- 393	2.77	179.94	H-Bond (Protein Donor)	false
O2P	O	HOH- 438	2.63	178.03	H-Bond (Protein Donor)	false
O1A	O	HOH- 439	2.71	179.95	H-Bond (Protein Donor)	false
