scPDB - 3r7w entry

Protein Data Bank Entry:

PDB ID : 3r7w

Resolution :2.770 Å

Experimental Method : X-ray

Deposition Date : 2011-03-23

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	GTP-binding protein GTR2
ID:	GTR2_YEAST
AC:	P53290
Organism:	Saccharomyces cerevisiae
Reign:	Eukaryota
TaxID:	559292
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	99.999
Number of residues:	39
Including
Standard Amino Acids:	38
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.159	475.875

% Hydrophobic	% Polar
35.46	64.54
According to VolSite

Ligand :

HET Code:	GNP
Formula:	C10H13N6O13P3
Molecular weight:	518.164 g/mol
DrugBank ID:	DB02082
Buried Surface Area:	71.27 %
Polar Surface area:	338.36 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	5
Rings:	3
Aromatic rings:	1
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
9.24334	82.4745	80.2453

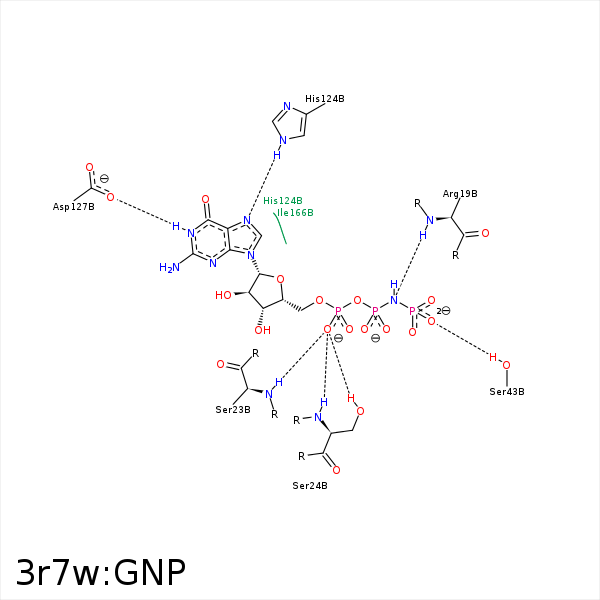

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C5'	CD	ARG- 19	3.9	0	Hydrophobic	false
O1B	N	LYS- 22	3.45	135.89	H-Bond (Protein Donor)	false
O2B	N	SER- 23	3.5	122.86	H-Bond (Protein Donor)	false
O1A	N	SER- 23	3.23	142.01	H-Bond (Protein Donor)	false
O1A	N	SER- 24	2.9	147.72	H-Bond (Protein Donor)	false
O1A	OG	SER- 24	3.08	149	H-Bond (Protein Donor)	false
O5'	OG	SER- 24	3.3	147.34	H-Bond (Protein Donor)	false
C2'	CD1	LEU- 39	4.4	0	Hydrophobic	false
O2G	OG	SER- 43	2.74	158.88	H-Bond (Protein Donor)	false
N7	NE2	HIS- 124	2.64	169.1	H-Bond (Protein Donor)	false
N1	OD1	ASP- 127	2.77	165.14	H-Bond (Ligand Donor)	false
N1	OD2	ASP- 127	3.16	128.43	H-Bond (Ligand Donor)	false
N2	OD2	ASP- 127	3.24	125.98	H-Bond (Ligand Donor)	false
O1G	MG	MG- 600	2.48	0	Metal Acceptor	false
O2B	MG	MG- 600	2.4	0	Metal Acceptor	false
