scPDB - 3r4b entry

Protein Data Bank Entry:

PDB ID : 3r4b

Resolution :1.900 Å

Experimental Method : X-ray

Deposition Date : 2011-03-17

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Gag-Pol polyprotein
ID:	POL_HV1A2
AC:	P03369
Organism:	Human immunodeficiency virus type 1 group M subtype B
Reign:	Viruses
TaxID:	11685
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	51 %
B	49 %

Ligand binding site composition:

B-Factor:	34.803
Number of residues:	46
Including
Standard Amino Acids:	45
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.744	621.000

% Hydrophobic	% Polar
42.93	57.07
According to VolSite

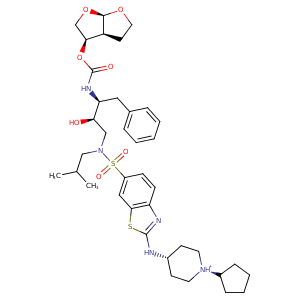

Ligand :

HET Code:	74T
Formula:	C38H54N5O7S2
Molecular weight:	756.995 g/mol
DrugBank ID:	-
Buried Surface Area:	59.12 %
Polar Surface area:	180.38 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	4
Rings:	7
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	2
Rotatable Bonds:	15

Mass center Coordinates

X	Y	Z
18.8148	32.998	15.2753

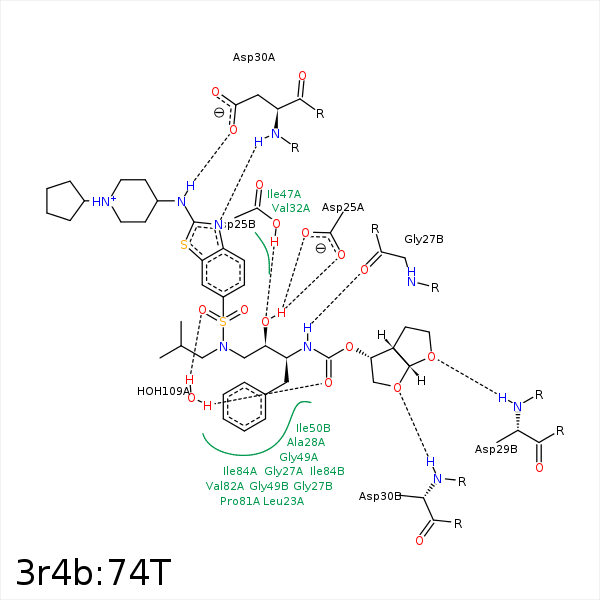

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C15	CD2	LEU- 23	3.81	0	Hydrophobic	false
C33	CD2	LEU- 23	3.89	0	Hydrophobic	false
O18	OD1	ASP- 25	2.57	154.16	H-Bond (Ligand Donor)	false
O18	OD2	ASP- 25	2.57	121.77	H-Bond (Ligand Donor)	false
O18	OD1	ASP- 25	2.72	161.46	H-Bond (Protein Donor)	false
N20	O	GLY- 27	3.28	163.95	H-Bond (Ligand Donor)	false
C16	CB	ALA- 28	4.21	0	Hydrophobic	false
C25	CB	ALA- 28	3.85	0	Hydrophobic	false
C7	CB	ALA- 28	3.28	0	Hydrophobic	false
C27	CB	ASP- 29	3.96	0	Hydrophobic	false
C29	CB	ASP- 29	4.36	0	Hydrophobic	false
C42	CB	ASP- 29	4.18	0	Hydrophobic	false
O28	N	ASP- 29	3	156.28	H-Bond (Protein Donor)	false
N1	N	ASP- 30	3.15	136.61	H-Bond (Protein Donor)	false
O26	N	ASP- 30	3.18	164.91	H-Bond (Protein Donor)	false
N24	OD2	ASP- 30	2.5	156.23	H-Bond (Ligand Donor)	false
C25	CG2	VAL- 32	4.01	0	Hydrophobic	false
C7	CG2	VAL- 32	3.95	0	Hydrophobic	false
S23	CB	ILE- 47	4.18	0	Hydrophobic	false
C25	CD1	ILE- 47	4.32	0	Hydrophobic	false
C43	CG2	ILE- 47	3.93	0	Hydrophobic	false
C5	CD1	ILE- 50	4.36	0	Hydrophobic	false
C24	CD1	ILE- 50	3.85	0	Hydrophobic	false
C37	CG1	ILE- 50	4.28	0	Hydrophobic	false
C36	CG	PRO- 81	3.54	0	Hydrophobic	false
C15	CG1	VAL- 82	3.39	0	Hydrophobic	false
C35	CG1	VAL- 82	3.47	0	Hydrophobic	false
C6	CD1	ILE- 84	4.21	0	Hydrophobic	false
C14	CG2	ILE- 84	4.36	0	Hydrophobic	false
C15	CG2	ILE- 84	4.24	0	Hydrophobic	false
C25	CD1	ILE- 84	4.19	0	Hydrophobic	false
C37	CD1	ILE- 84	3.76	0	Hydrophobic	false
O22	O	HOH- 109	2.93	180	H-Bond (Protein Donor)	false
