scPDB - 3qtw entry

Protein Data Bank Entry:

PDB ID : 3qtw

Resolution :1.850 Å

Experimental Method : X-ray

Deposition Date : 2011-02-23

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Cyclin-dependent kinase 2
ID:	CDK2_HUMAN
AC:	P24941
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.22

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	29.733
Number of residues:	25
Including
Standard Amino Acids:	25
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.203	462.375

% Hydrophobic	% Polar
59.85	40.15
According to VolSite

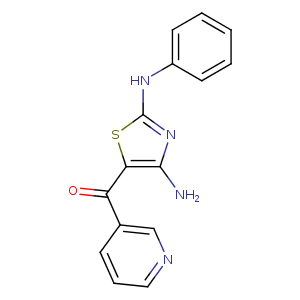

Ligand :

HET Code:	X3A
Formula:	C15H12N4OS
Molecular weight:	296.347 g/mol
DrugBank ID:	-
Buried Surface Area:	67.62 %
Polar Surface area:	109.14 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	2
Rings:	3
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	4

Mass center Coordinates

X	Y	Z
93.0608	8.90414	-84.7563

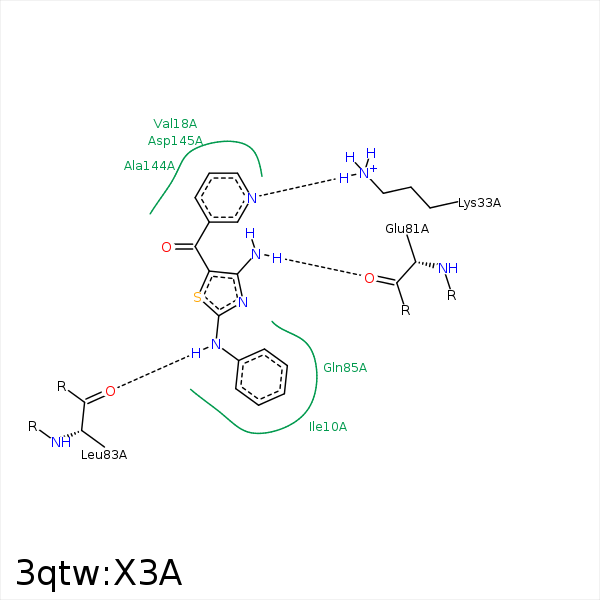

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
S13	CD1	ILE- 10	3.96	0	Hydrophobic	false
C20	CB	ILE- 10	4.01	0	Hydrophobic	false
C16	CD1	ILE- 10	3.69	0	Hydrophobic	false
C6	CG1	VAL- 18	4.32	0	Hydrophobic	false
S13	CG1	VAL- 18	4.45	0	Hydrophobic	false
N8	NZ	LYS- 33	2.97	135.23	H-Bond (Protein Donor)	false
N3	O	GLU- 81	2.69	143.44	H-Bond (Ligand Donor)	false
N1	N	LEU- 83	3.43	174.57	H-Bond (Protein Donor)	false
N15	O	LEU- 83	2.75	147.57	H-Bond (Ligand Donor)	false
C19	CD	LYS- 89	4.41	0	Hydrophobic	false
C11	CD2	LEU- 134	4.43	0	Hydrophobic	false
S13	CD2	LEU- 134	3.75	0	Hydrophobic	false
C11	CB	ALA- 144	4.23	0	Hydrophobic	false
C10	CB	ASP- 145	3.93	0	Hydrophobic	false
