scPDB - 3ork entry

Protein Data Bank Entry:

PDB ID : 3ork

Resolution :1.600 Å

Experimental Method : X-ray

Deposition Date : 2010-09-07

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Serine/threonine protein kinase
ID:	A5TY84_MYCTA
AC:	A5TY84
Organism:	Mycobacterium tuberculosis
Reign:	Bacteria
TaxID:	419947
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	14.686
Number of residues:	32
Including
Standard Amino Acids:	31
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MN

Cavity properties

Ligandability	Volume (Å3)
0.702	469.125

% Hydrophobic	% Polar
51.08	48.92
According to VolSite

Ligand :

HET Code:	AGS
Formula:	C10H14N5O12P3S
Molecular weight:	521.231 g/mol
DrugBank ID:	DB02930
Buried Surface Area:	61.46 %
Polar Surface area:	329.24 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	5
Rings:	3
Aromatic rings:	2
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
13.3065	14.5673	12.2918

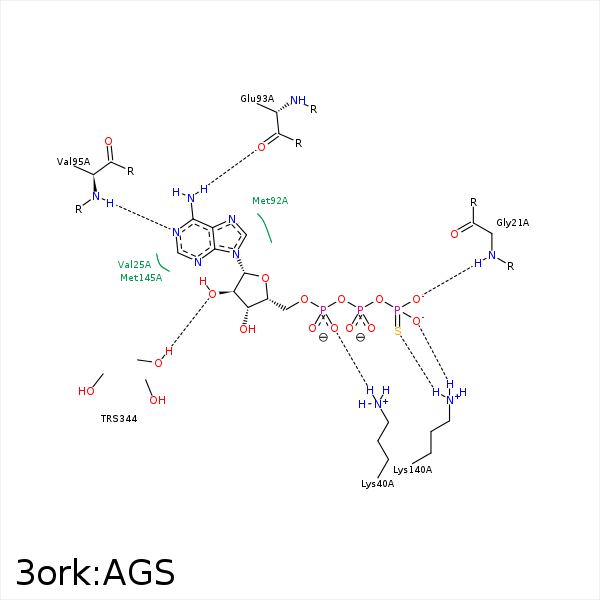

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3G	N	GLY- 21	2.8	158.34	H-Bond (Protein Donor)	false
C1'	CB	VAL- 25	4.29	0	Hydrophobic	false
C5'	CG2	VAL- 25	3.95	0	Hydrophobic	false
O1A	NZ	LYS- 40	3.62	0	Ionic (Protein Cationic)	false
O2A	NZ	LYS- 40	2.88	0	Ionic (Protein Cationic)	false
O2A	NZ	LYS- 40	2.88	126.96	H-Bond (Protein Donor)	false
N6	O	GLU- 93	2.94	154.23	H-Bond (Ligand Donor)	false
N1	N	VAL- 95	3.21	165.43	H-Bond (Protein Donor)	false
C2'	CG2	THR- 99	3.72	0	Hydrophobic	false
O2G	NZ	LYS- 140	2.6	150.27	H-Bond (Protein Donor)	false
O2G	NZ	LYS- 140	2.6	0	Ionic (Protein Cationic)	false
O1B	NZ	LYS- 140	3.88	0	Ionic (Protein Cationic)	false
O1B	MN	MN- 341	2.17	0	Metal Acceptor	false
O2A	MN	MN- 341	2.13	0	Metal Acceptor	false
