scPDB - 3n39 entry

Protein Data Bank Entry:

PDB ID : 3n39

Resolution :2.500 Å

Experimental Method : X-ray

Deposition Date : 2010-05-19

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Protein NrdI
ID:	NRDI_ECOLI
AC:	P0A772
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	19 %
C	81 %

Ligand binding site composition:

B-Factor:	50.140
Number of residues:	37
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.994	502.875

% Hydrophobic	% Polar
53.69	46.31
According to VolSite

Ligand :

HET Code:	FMN
Formula:	C17H19N4O9P
Molecular weight:	454.328 g/mol
DrugBank ID:	DB03247
Buried Surface Area:	80.61 %
Polar Surface area:	217.05 Å2

Number of
H-Bond Acceptors:	12
H-Bond Donors:	4
Rings:	3
Aromatic rings:	1
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
-14.9583	-20.5102	23.4723

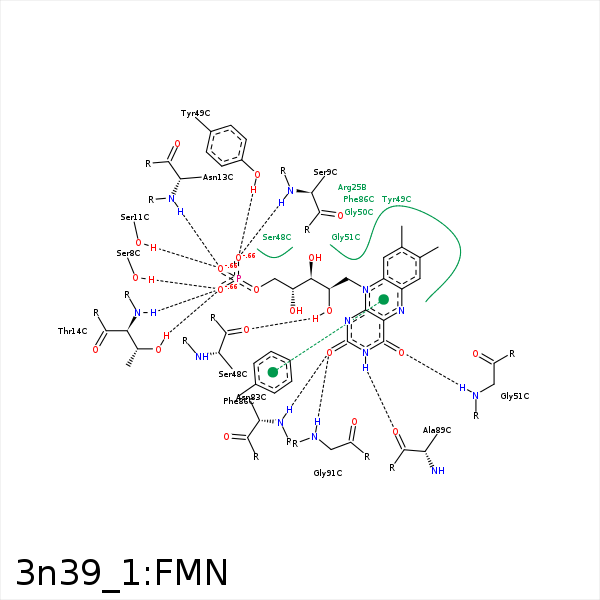

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3P	OG	SER- 8	2.64	162.75	H-Bond (Protein Donor)	false
O2P	N	SER- 9	3.14	148.79	H-Bond (Protein Donor)	false
O3P	N	SER- 9	3.44	149.34	H-Bond (Protein Donor)	false
O1P	OG	SER- 11	2.55	154.84	H-Bond (Protein Donor)	false
O1P	N	ASN- 13	2.82	162.69	H-Bond (Protein Donor)	false
C5'	CB	ASN- 13	4.02	0	Hydrophobic	false
O3P	N	THR- 14	3.05	164.85	H-Bond (Protein Donor)	false
O3P	OG1	THR- 14	2.88	157.4	H-Bond (Protein Donor)	false
C7M	CG	GLU- 21	4.06	0	Hydrophobic	false
C7M	CB	ARG- 25	3.81	0	Hydrophobic	false
C6	CD	ARG- 25	4.12	0	Hydrophobic	false
C5'	CB	PRO- 47	3.98	0	Hydrophobic	false
O2'	O	SER- 48	2.68	160.82	H-Bond (Ligand Donor)	false
C7M	CD1	TYR- 49	4.16	0	Hydrophobic	false
C8M	CE1	TYR- 49	3.74	0	Hydrophobic	false
C5'	CZ	TYR- 49	4.19	0	Hydrophobic	false
O2P	OH	TYR- 49	2.5	158.73	H-Bond (Protein Donor)	false
O4	N	GLY- 50	3.28	122.36	H-Bond (Protein Donor)	false
O4	N	GLY- 51	2.87	172.08	H-Bond (Protein Donor)	false
N1	N	ASN- 83	3.23	126.78	H-Bond (Protein Donor)	false
O2	N	ASN- 83	2.98	160.98	H-Bond (Protein Donor)	false
C1'	CB	ASN- 83	4.3	0	Hydrophobic	false
C1'	CE2	PHE- 86	3.81	0	Hydrophobic	false
C9A	CZ	PHE- 86	3.49	0	Hydrophobic	false
N3	O	ALA- 89	2.74	175.17	H-Bond (Ligand Donor)	false
O2	N	GLY- 91	3.04	161.35	H-Bond (Protein Donor)	false
C3'	CD2	LEU- 111	4.07	0	Hydrophobic	false
C8M	CE2	TYR- 197	3.56	0	Hydrophobic	false
C5'	CE1	TYR- 197	4.35	0	Hydrophobic	false
