scPDB - 3m2u entry

Protein Data Bank Entry:

PDB ID : 3m2u

Resolution :1.400 Å

Experimental Method : X-ray

Deposition Date : 2010-03-08

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Methyl-coenzyme M reductase I subunit alpha
ID:	MCRA_METTM
AC:	P11558
Organism:	Methanothermobacter marburgensis
Reign:	Archaea
TaxID:	79929
EC Number:	2.8.4.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	14 %
D	52 %
E	24 %
F	10 %

Ligand binding site composition:

B-Factor:	9.364
Number of residues:	20
Including
Standard Amino Acids:	18
Non Standard Amino Acids:	2
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.392	978.750

% Hydrophobic	% Polar
52.41	47.59
According to VolSite

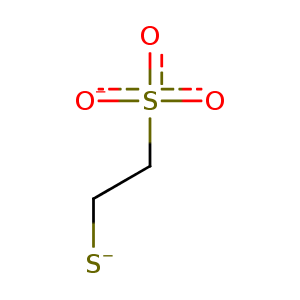

Ligand :

HET Code:	COM
Formula:	C2H5O3S2
Molecular weight:	141.189 g/mol
DrugBank ID:	DB09110
Buried Surface Area:	56.58 %
Polar Surface area:	104.38 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	1
Rings:	0
Aromatic rings:	0
Anionic atoms:	1
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
30.3586	38.6707	-58.7391

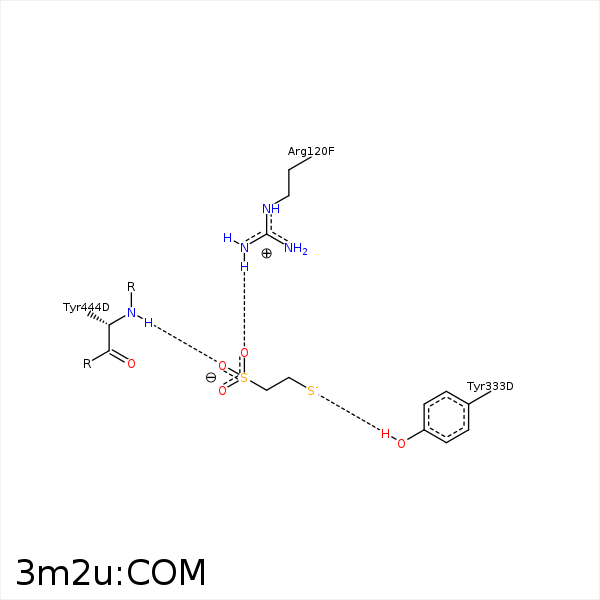

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O2S	NH1	ARG- 120	2.89	127.62	H-Bond (Protein Donor)	false
S1	CE2	TYR- 333	3.94	0	Hydrophobic	false
C2	CE1	PHE- 361	3.85	0	Hydrophobic	false
C2	CE2	TYR- 367	3.82	0	Hydrophobic	false
S1	CZ	TYR- 367	3.98	0	Hydrophobic	false
C1	CB	PHE- 443	3.5	0	Hydrophobic	false
C2	CD2	PHE- 443	4.03	0	Hydrophobic	false
O1S	N	TYR- 444	2.8	154.07	H-Bond (Protein Donor)	false
