scPDB - 3k90 entry

Protein Data Bank Entry:

PDB ID : 3k90

Resolution :2.000 Å

Experimental Method : X-ray

Deposition Date : 2009-10-15

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Abscisic acid receptor PYR1
ID:	PYR1_ARATH
AC:	O49686
Organism:	Arabidopsis thaliana
Reign:	Eukaryota
TaxID:	3702
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	94 %
B	6 %

Ligand binding site composition:

B-Factor:	25.863
Number of residues:	35
Including
Standard Amino Acids:	32
Non Standard Amino Acids:	0
Water Molecules:	3
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.099	394.875

% Hydrophobic	% Polar
62.39	37.61
According to VolSite

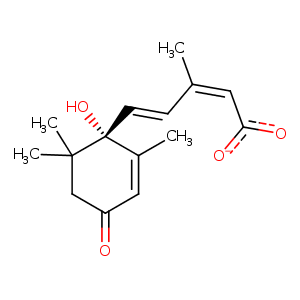

Ligand :

HET Code:	A8S
Formula:	C15H19O4
Molecular weight:	263.309 g/mol
DrugBank ID:	-
Buried Surface Area:	69.26 %
Polar Surface area:	77.43 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	1
Rings:	1
Aromatic rings:	0
Anionic atoms:	1
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	3

Mass center Coordinates

X	Y	Z
18.1114	-18.1161	5.13316

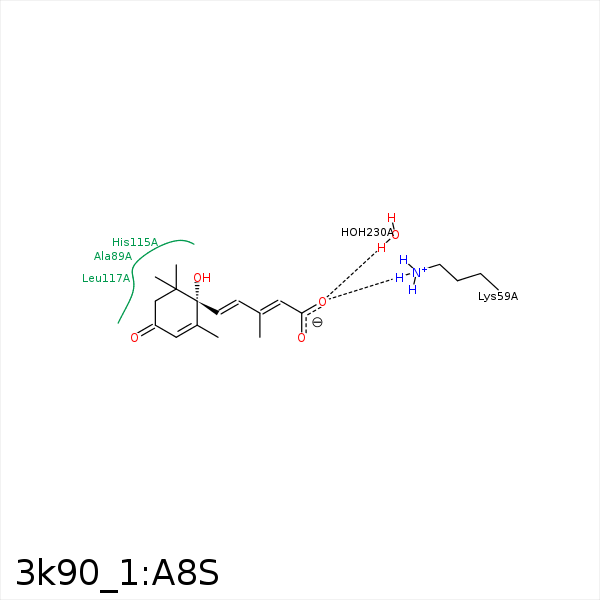

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O11	NZ	LYS- 59	3.22	123.4	H-Bond (Protein Donor)	false
O12	NZ	LYS- 59	3.08	157.58	H-Bond (Protein Donor)	false
O11	NZ	LYS- 59	3.22	0	Ionic (Protein Cationic)	false
O12	NZ	LYS- 59	3.08	0	Ionic (Protein Cationic)	false
C13	CB	PHE- 61	3.83	0	Hydrophobic	false
C13	CG2	VAL- 83	4.35	0	Hydrophobic	false
C14	CG2	VAL- 83	3.48	0	Hydrophobic	false
C13	CD1	LEU- 87	4.35	0	Hydrophobic	false
C14	CB	ALA- 89	3.66	0	Hydrophobic	false
C14	CB	SER- 92	3.8	0	Hydrophobic	false
C15	CB	SER- 92	3.83	0	Hydrophobic	false
C15	CD1	ILE- 110	3.45	0	Hydrophobic	false
C11	CB	HIS- 115	4.36	0	Hydrophobic	false
C6	CD2	LEU- 117	3.89	0	Hydrophobic	false
C11	CD2	LEU- 117	3.99	0	Hydrophobic	false
C15	CD2	LEU- 117	4.27	0	Hydrophobic	false
C6	CZ	TYR- 120	4.05	0	Hydrophobic	false
C6	CB	ALA- 160	4.44	0	Hydrophobic	false
C6	CG1	VAL- 163	3.87	0	Hydrophobic	false
C13	CG1	VAL- 163	4.19	0	Hydrophobic	false
O12	O	HOH- 230	2.6	179.96	H-Bond (Protein Donor)	false
