2.700 Å
X-ray
2009-02-24
| Name: | Glycerol kinase |
|---|---|
| ID: | GLPK_STAAC |
| AC: | Q5HGD2 |
| Organism: | Staphylococcus aureus |
| Reign: | Bacteria |
| TaxID: | 93062 |
| EC Number: | / |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| C | 100 % |
| B-Factor: | 39.513 |
|---|---|
| Number of residues: | 42 |
| Including | |
| Standard Amino Acids: | 41 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 1 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 0.564 | 874.125 |
| % Hydrophobic | % Polar |
|---|---|
| 40.15 | 59.85 |
| According to VolSite | |

| HET Code: | ADP |
|---|---|
| Formula: | C10H12N5O10P2 |
| Molecular weight: | 424.177 g/mol |
| DrugBank ID: | - |
| Buried Surface Area: | 61.9 % |
| Polar Surface area: | 260.7 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 14 |
| H-Bond Donors: | 3 |
| Rings: | 3 |
| Aromatic rings: | 2 |
| Anionic atoms: | 3 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 1 |
| Rotatable Bonds: | 6 |
| X | Y | Z |
|---|---|---|
| -6.29681 | -48.2876 | 27.4586 |

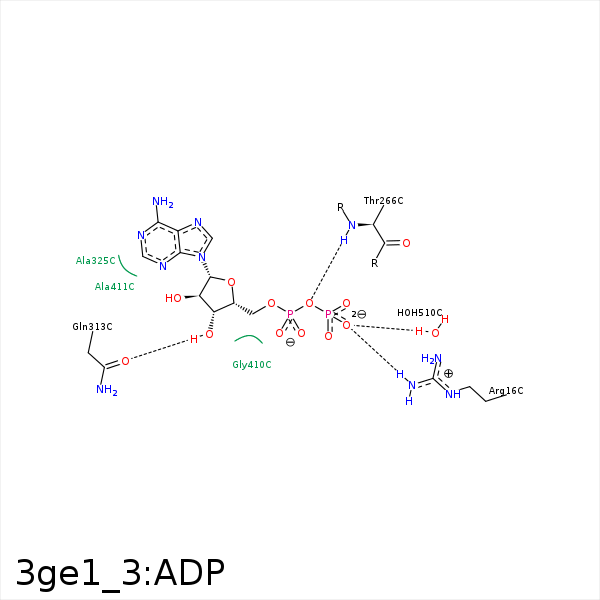

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| O1B | N | THR- 12 | 3.49 | 170.53 | H-Bond (Protein Donor) |
| O1B | OG1 | THR- 12 | 3.37 | 160.8 | H-Bond (Protein Donor) |
| O3B | N | THR- 12 | 3.06 | 120.72 | H-Bond (Protein Donor) |
| O3B | N | THR- 13 | 3.42 | 171.11 | H-Bond (Protein Donor) |
| O2B | NH2 | ARG- 16 | 3.1 | 149.92 | H-Bond (Protein Donor) |
| O2B | CZ | ARG- 16 | 3.94 | 0 | Ionic (Protein Cationic) |
| O1A | CZ | ARG- 16 | 3.66 | 0 | Ionic (Protein Cationic) |
| O3B | OG1 | THR- 266 | 3.38 | 158.96 | H-Bond (Protein Donor) |
| O3A | N | THR- 266 | 3.11 | 154.3 | H-Bond (Protein Donor) |
| O3' | OE1 | GLN- 313 | 3.01 | 152.43 | H-Bond (Ligand Donor) |
| C1' | CB | ALA- 411 | 4.43 | 0 | Hydrophobic |
| O2B | O | HOH- 510 | 2.94 | 179.98 | H-Bond (Protein Donor) |
