scPDB - 3g8a entry

Protein Data Bank Entry:

PDB ID : 3g8a

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2009-02-11

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Ribosomal RNA small subunit methyltransferase G
ID:	RSMG_THET8
AC:	Q9LCY2
Organism:	Thermus thermophilus
Reign:	Bacteria
TaxID:	300852
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	39.800
Number of residues:	29
Including
Standard Amino Acids:	28
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.200	330.750

% Hydrophobic	% Polar
55.10	44.90
According to VolSite

Ligand :

HET Code:	SAH
Formula:	C14H20N6O5S
Molecular weight:	384.411 g/mol
DrugBank ID:	DB01752
Buried Surface Area:	52.47 %
Polar Surface area:	212.38 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
23.4065	10.2937	-20.2

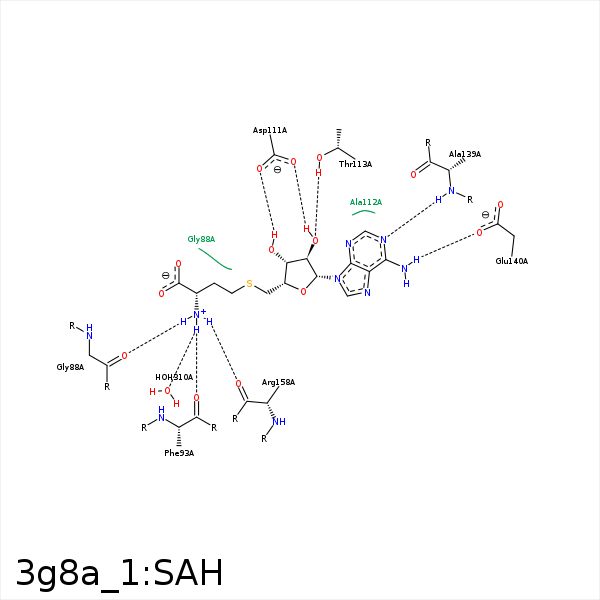

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N	O	GLY- 88	2.6	149.29	H-Bond (Ligand Donor)	false
N	O	PHE- 93	3.04	145.67	H-Bond (Ligand Donor)	false
O3'	OD1	ASP- 111	3.45	130.39	H-Bond (Ligand Donor)	false
O3'	OD2	ASP- 111	2.85	175.13	H-Bond (Ligand Donor)	false
O2'	OD1	ASP- 111	2.77	148.33	H-Bond (Ligand Donor)	false
O2'	OD2	ASP- 111	3.46	153.16	H-Bond (Ligand Donor)	false
N3	N	ALA- 112	3.21	128.1	H-Bond (Protein Donor)	false
O2'	OG1	THR- 113	3.24	170.94	H-Bond (Protein Donor)	false
N1	N	ALA- 139	3.06	165.16	H-Bond (Protein Donor)	false
N6	OE1	GLU- 140	3.22	151.09	H-Bond (Ligand Donor)	false
N	O	ARG- 158	3.07	145.47	H-Bond (Ligand Donor)	false
O	CZ	ARG- 158	3.8	0	Ionic (Protein Cationic)	false
OXT	CZ	ARG- 158	3.52	0	Ionic (Protein Cationic)	false
N	O	HOH- 310	2.92	120.82	H-Bond (Ligand Donor)	false
