scPDB - 3fmw entry

Protein Data Bank Entry:

PDB ID : 3fmw

Resolution :2.890 Å

Experimental Method : X-ray

Deposition Date : 2008-12-22

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Oxygenase
ID:	Q194P4_STRAA
AC:	Q194P4
Organism:	Streptomyces argillaceus
Reign:	Bacteria
TaxID:	41951
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	99.999
Number of residues:	53
Including
Standard Amino Acids:	53
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.678	1856.250

% Hydrophobic	% Polar
47.45	52.55
According to VolSite

Ligand :

HET Code:	FAD
Formula:	C27H31N9O15P2
Molecular weight:	783.534 g/mol
DrugBank ID:	DB03147
Buried Surface Area:	65.07 %
Polar Surface area:	381.7 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	7
Rings:	6
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
25.1901	-15.4828	27.5799

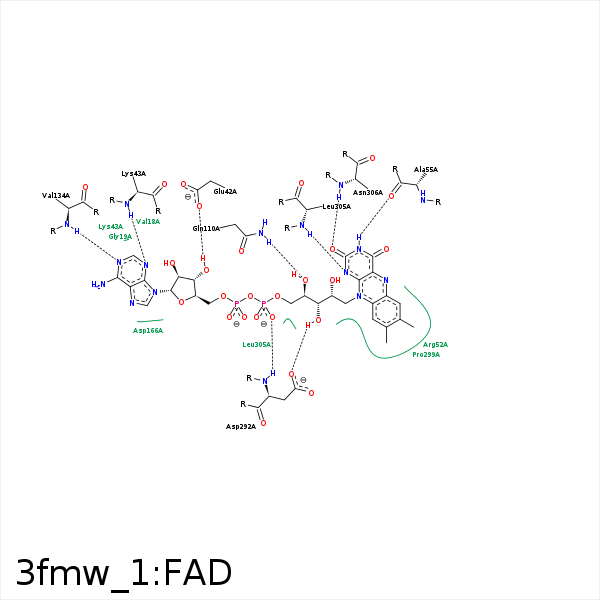

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O2P	N	VAL- 23	3.48	126.76	H-Bond (Protein Donor)	false
O3B	OE2	GLU- 42	2.95	135.53	H-Bond (Ligand Donor)	false
O3B	OE1	GLU- 42	3.32	132.95	H-Bond (Ligand Donor)	false
N3A	N	LYS- 43	2.84	136.24	H-Bond (Protein Donor)	false
C2B	CB	LYS- 43	3.87	0	Hydrophobic	false
C2B	CD1	LEU- 44	4.13	0	Hydrophobic	false
C6	CB	ARG- 52	3.97	0	Hydrophobic	false
C9A	CB	ARG- 52	4.08	0	Hydrophobic	false
C2'	CD	ARG- 52	4.19	0	Hydrophobic	false
C7	CG	ARG- 52	3.5	0	Hydrophobic	false
C8	CG	ARG- 52	3.31	0	Hydrophobic	false
N3	O	ALA- 55	3.27	153.07	H-Bond (Ligand Donor)	false
O4'	NE2	GLN- 110	2.64	155.06	H-Bond (Protein Donor)	false
N1A	N	VAL- 134	3.12	144.44	H-Bond (Protein Donor)	false
C5B	CB	ASP- 166	4.48	0	Hydrophobic	false
C1B	CB	ASP- 166	3.65	0	Hydrophobic	false
C7M	CD1	ILE- 191	3.59	0	Hydrophobic	false
C7M	CE1	PHE- 272	3.43	0	Hydrophobic	false
C8M	CE2	PHE- 272	3.23	0	Hydrophobic	false
O3'	OD1	ASP- 292	3.05	164.27	H-Bond (Ligand Donor)	false
C5'	CB	ASP- 292	4.05	0	Hydrophobic	false
O1P	N	ASP- 292	3.23	153.35	H-Bond (Protein Donor)	false
C8M	CG	PRO- 299	4	0	Hydrophobic	false
C9A	CB	PRO- 299	4.24	0	Hydrophobic	false
C7	CB	PRO- 299	3.78	0	Hydrophobic	false
C8	CB	PRO- 299	3.85	0	Hydrophobic	false
N1	N	LEU- 305	2.82	172.66	H-Bond (Protein Donor)	false
C2'	CB	LEU- 305	4.48	0	Hydrophobic	false
C4'	CB	LEU- 305	4.37	0	Hydrophobic	false
O2	N	ASN- 306	2.93	152.51	H-Bond (Protein Donor)	false
