sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
2.300 Å
X-ray
2008-12-19
| Min | Mean | Median | Standard Deviation | Max | Count | |
|---|---|---|---|---|---|---|
| pChEMBL: | 8.920 | 8.920 | 8.920 | 0.000 | 8.920 | 1 |
| Name: | Mitogen-activated protein kinase 14 |
|---|---|
| ID: | MK14_HUMAN |
| AC: | Q16539 |
| Organism: | Homo sapiens |
| Reign: | Eukaryota |
| TaxID: | 9606 |
| EC Number: | / |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 42.686 |
|---|---|
| Number of residues: | 36 |
| Including | |
| Standard Amino Acids: | 36 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 0 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.078 | 513.000 |
| % Hydrophobic | % Polar |
|---|---|
| 55.92 | 44.08 |
| According to VolSite | |

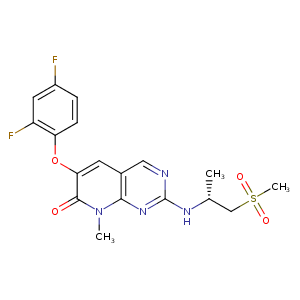

| HET Code: | FLS |
|---|---|
| Formula: | C18H18F2N4O4S |
| Molecular weight: | 424.422 g/mol |
| DrugBank ID: | - |
| Buried Surface Area: | 57.89 % |
| Polar Surface area: | 109.86 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 7 |
| H-Bond Donors: | 1 |
| Rings: | 3 |
| Aromatic rings: | 2 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 6 |
| X | Y | Z |
|---|---|---|
| 21.6467 | 8.86476 | 31.1396 |

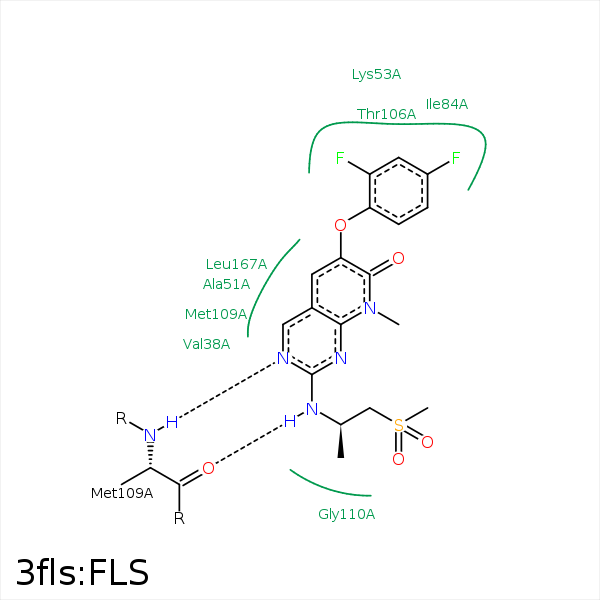

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C5 | CG1 | VAL- 30 | 4.47 | 0 | Hydrophobic |
| F26 | CG1 | VAL- 38 | 3.47 | 0 | Hydrophobic |
| C11 | CB | ALA- 51 | 3.84 | 0 | Hydrophobic |
| F26 | CB | ALA- 51 | 3.6 | 0 | Hydrophobic |
| C19 | CD | LYS- 53 | 3.88 | 0 | Hydrophobic |
| C25 | CB | LYS- 53 | 3.29 | 0 | Hydrophobic |
| F27 | CD1 | LEU- 75 | 4.28 | 0 | Hydrophobic |
| C22 | CD1 | LEU- 75 | 3.9 | 0 | Hydrophobic |
| C21 | CD1 | ILE- 84 | 3.36 | 0 | Hydrophobic |
| C22 | CD1 | ILE- 84 | 3.6 | 0 | Hydrophobic |
| C23 | CD1 | LEU- 86 | 4.45 | 0 | Hydrophobic |
| F27 | CB | LEU- 104 | 3.23 | 0 | Hydrophobic |
| F27 | CB | THR- 106 | 3.77 | 0 | Hydrophobic |
| C24 | CG2 | THR- 106 | 3.39 | 0 | Hydrophobic |
| C5 | CD1 | LEU- 108 | 3.75 | 0 | Hydrophobic |
| N17 | O | MET- 109 | 2.66 | 160.84 | H-Bond (Ligand Donor) |
| N13 | N | MET- 109 | 2.88 | 164.65 | H-Bond (Protein Donor) |
| C2 | CB | ASP- 112 | 4.13 | 0 | Hydrophobic |
| C2 | CB | ALA- 157 | 4.38 | 0 | Hydrophobic |
| C20 | CD1 | LEU- 167 | 4.48 | 0 | Hydrophobic |
| C11 | CD1 | LEU- 167 | 4.27 | 0 | Hydrophobic |
