scPDB - 3dcs entry

Protein Data Bank Entry:

PDB ID : 3dcs

Resolution :1.800 Å

Experimental Method : X-ray

Deposition Date : 2008-06-04

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:	7.300	7.850	7.850	0.060	8.050	95

List of CHEMBLId :

CHEMBL19

Binding Site :

Uniprot Annotation

Name:	Carbonic anhydrase 2
ID:	CAH2_HUMAN
AC:	P00918
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	4.2.1.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	12.305
Number of residues:	24
Including
Standard Amino Acids:	23
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	ZN

Cavity properties

Ligandability	Volume (Å3)
0.855	438.750

% Hydrophobic	% Polar
53.85	46.15
According to VolSite

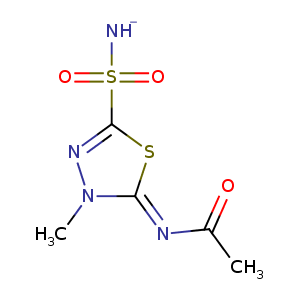

Ligand :

HET Code:	MZM
Formula:	C5H8N4O3S2
Molecular weight:	236.272 g/mol
DrugBank ID:	-
Buried Surface Area:	65.75 %
Polar Surface area:	138.87 Å2

Number of
H-Bond Acceptors:	7
H-Bond Donors:	1
Rings:	1
Aromatic rings:	0
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	1

Mass center Coordinates

X	Y	Z
-5.26207	2.88514	15.2029

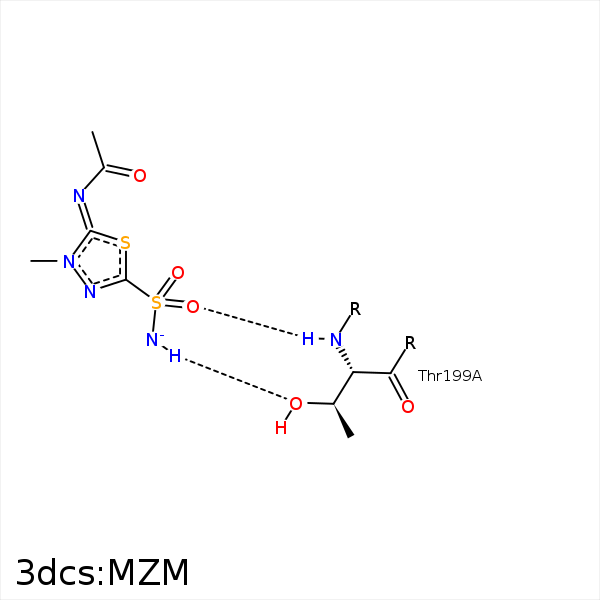

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4	CG	GLN- 92	3.7	0	Hydrophobic	false
S2	CG2	VAL- 121	3.86	0	Hydrophobic	false
C4	CG1	VAL- 121	3.52	0	Hydrophobic	false
C4	CZ	PHE- 131	3.9	0	Hydrophobic	false
S2	CD2	LEU- 198	3.94	0	Hydrophobic	false
C5	CD1	LEU- 198	4.04	0	Hydrophobic	false
N1	OG1	THR- 199	3.03	155.69	H-Bond (Ligand Donor)	false
O2	N	THR- 199	3.03	143.8	H-Bond (Protein Donor)	false
C5	CB	THR- 200	4.34	0	Hydrophobic	false
N1	ZN	ZN- 262	2.09	0	Metal Acceptor	false
