scPDB - 3cic entry

Protein Data Bank Entry:

PDB ID : 3cic

Resolution :1.750 Å

Experimental Method : X-ray

Deposition Date : 2008-03-11

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:	8.520	8.520	8.520	0.000	8.520	1

List of CHEMBLId :

CHEMBL509210

Binding Site :

Uniprot Annotation

Name:	Beta-secretase 1
ID:	BACE1_HUMAN
AC:	P56817
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	3.4.23.46

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	16.478
Number of residues:	48
Including
Standard Amino Acids:	43
Non Standard Amino Acids:	0
Water Molecules:	5
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.955	833.625

% Hydrophobic	% Polar
35.22	64.78
According to VolSite

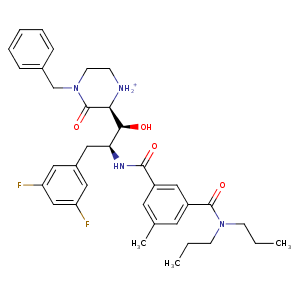

Ligand :

HET Code:	316
Formula:	C35H43F2N4O4
Molecular weight:	621.737 g/mol
DrugBank ID:	-
Buried Surface Area:	64.2 %
Polar Surface area:	106.56 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	3
Rings:	4
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
19.7077	32.6742	57.3576

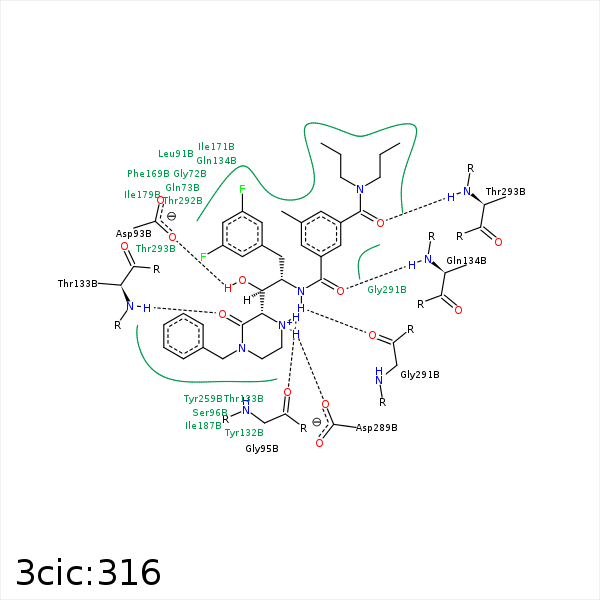

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C24	CD2	LEU- 91	3.6	0	Hydrophobic	false
O3	OD2	ASP- 93	2.66	161.39	H-Bond (Ligand Donor)	false
N3	O	GLY- 95	3.04	152.94	H-Bond (Ligand Donor)	false
C33	CB	SER- 96	3.86	0	Hydrophobic	false
C33	CG1	VAL- 130	4.35	0	Hydrophobic	false
C17	CD1	TYR- 132	4.24	0	Hydrophobic	false
C18	CD1	TYR- 132	3.79	0	Hydrophobic	false
C20	CB	TYR- 132	3.63	0	Hydrophobic	false
C14	CG2	THR- 133	4.16	0	Hydrophobic	false
C5	CB	THR- 133	3.78	0	Hydrophobic	false
O4	N	THR- 133	2.91	159.91	H-Bond (Protein Donor)	false
O2	N	GLN- 134	2.87	154.02	H-Bond (Protein Donor)	false
C22	CG	GLN- 134	4.2	0	Hydrophobic	false
C10	CG	GLN- 134	3.64	0	Hydrophobic	false
F1	CB	GLN- 134	3.66	0	Hydrophobic	false
C4	CB	GLN- 134	3.43	0	Hydrophobic	false
F1	CD1	PHE- 169	3.3	0	Hydrophobic	false
C10	CD1	ILE- 171	3.79	0	Hydrophobic	false
C12	CD1	ILE- 171	3.78	0	Hydrophobic	false
F2	CD1	ILE- 171	3.55	0	Hydrophobic	false
F2	CZ2	TRP- 176	3.39	0	Hydrophobic	false
C18	CD1	ILE- 179	4.21	0	Hydrophobic	false
C35	CB	ILE- 187	3.97	0	Hydrophobic	false
N3	OD1	ASP- 289	3.74	0	Ionic (Ligand Cationic)	false
N3	OD2	ASP- 289	2.63	0	Ionic (Ligand Cationic)	false
N3	OD2	ASP- 289	2.63	173.22	H-Bond (Ligand Donor)	false
N2	O	GLY- 291	3.01	158.1	H-Bond (Ligand Donor)	false
C3	CB	THR- 292	4.4	0	Hydrophobic	false
C2	CG2	THR- 292	4.33	0	Hydrophobic	false
O1	N	THR- 293	2.72	157.67	H-Bond (Protein Donor)	false
C14	CD	ARG- 296	4.35	0	Hydrophobic	false
