Protein Data Bank Entry:

PDB ID : 3anl

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2010-09-03

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	1-deoxy-D-xylulose 5-phosphate reductoisomerase
ID:	DXR_ECOLI
AC:	P45568
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	1.1.1.267

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	23.125
Number of residues:	24
Including
Standard Amino Acids:	22
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.713	729.000

% Hydrophobic	% Polar
37.04	62.96
According to VolSite

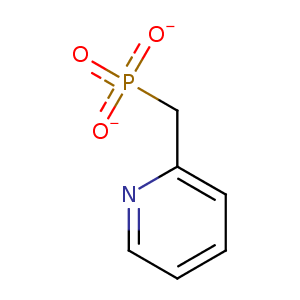

Ligand :

HET Code:	SYC
Formula:	C6H6NO3P
Molecular weight:	171.090 g/mol
DrugBank ID:	-
Buried Surface Area:	69.71 %
Polar Surface area:	85.89 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	0
Rings:	1
Aromatic rings:	1
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
-12.5604	14.2604	15.3564

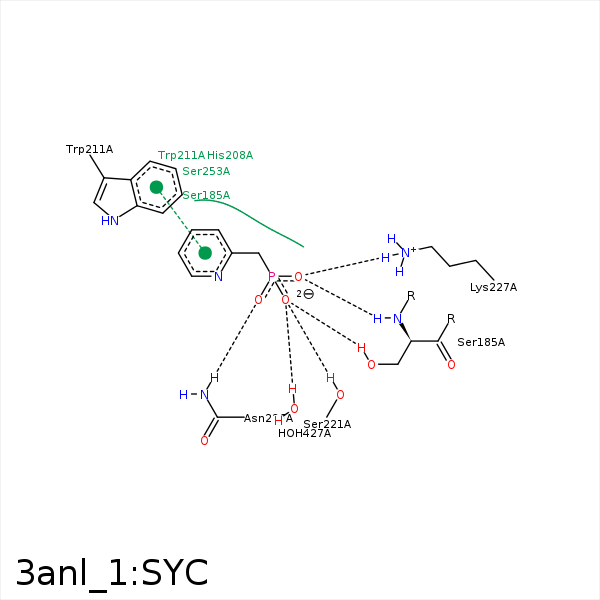

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O16	N	SER- 185	3.46	142.19	H-Bond (Protein Donor)	false
O16	OG	SER- 185	2.51	168.84	H-Bond (Protein Donor)	false
O17	N	SER- 185	3.03	157.33	H-Bond (Protein Donor)	false
C4	CB	SER- 185	3.91	0	Hydrophobic	false
C11	CH2	TRP- 211	3.49	0	Hydrophobic	false
C5	CB	TRP- 211	3.49	0	Hydrophobic	false
DuAr	DuAr	TRP- 211	3.84	0	Aromatic Face/Face	false
C11	CB	SER- 221	4.33	0	Hydrophobic	false
O16	OG	SER- 221	2.65	157.15	H-Bond (Protein Donor)	false
O15	ND2	ASN- 226	2.54	165.81	H-Bond (Protein Donor)	false
O15	NZ	LYS- 227	3.44	134.22	H-Bond (Protein Donor)	false
O17	NZ	LYS- 227	2.87	141.45	H-Bond (Protein Donor)	false
O15	NZ	LYS- 227	3.44	0	Ionic (Protein Cationic)	false
O17	NZ	LYS- 227	2.87	0	Ionic (Protein Cationic)	false
C6	CB	SER- 253	4.06	0	Hydrophobic	false
O16	O	HOH- 427	2.73	164.16	H-Bond (Protein Donor)	false
