scPDB - 2ztl entry

Protein Data Bank Entry:

PDB ID : 2ztl

Resolution :1.800 Å

Experimental Method : X-ray

Deposition Date : 2008-10-07

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	D(-)-3-hydroxybutyrate dehydrogenase
ID:	Q5KST5_PSEFR
AC:	Q5KST5
Organism:	Pseudomonas fragi
Reign:	Bacteria
TaxID:	296
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
C	100 %

Ligand binding site composition:

B-Factor:	19.681
Number of residues:	49
Including
Standard Amino Acids:	48
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.130	600.750

% Hydrophobic	% Polar
44.94	55.06
According to VolSite

Ligand :

HET Code:	NAD
Formula:	C21H26N7O14P2
Molecular weight:	662.417 g/mol
DrugBank ID:	-
Buried Surface Area:	77 %
Polar Surface area:	343.54 Å2

Number of
H-Bond Acceptors:	18
H-Bond Donors:	6
Rings:	5
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	1
Rule of Five Violation:	3
Rotatable Bonds:	11

Mass center Coordinates

X	Y	Z
-12.0939	-18.3603	35.7205

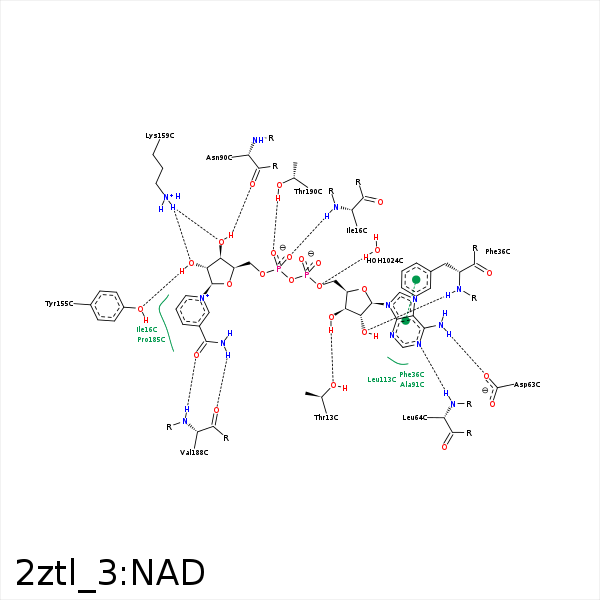

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3B	OG1	THR- 13	2.84	150.09	H-Bond (Ligand Donor)	false
O2N	N	ILE- 16	2.83	162.42	H-Bond (Protein Donor)	false
C5D	CD1	ILE- 16	4.14	0	Hydrophobic	false
C3N	CD1	ILE- 16	3.83	0	Hydrophobic	false
O2B	N	PHE- 36	2.79	163.07	H-Bond (Protein Donor)	false
N6A	OD1	ASP- 63	3.06	149.65	H-Bond (Ligand Donor)	false
N1A	N	LEU- 64	2.87	172.98	H-Bond (Protein Donor)	false
O3D	O	ASN- 90	2.69	151.88	H-Bond (Ligand Donor)	false
C1B	CB	ALA- 91	4.39	0	Hydrophobic	false
C4D	CG2	ILE- 140	4.11	0	Hydrophobic	false
C5N	CB	SER- 142	3.97	0	Hydrophobic	false
C2D	CZ	TYR- 155	4.47	0	Hydrophobic	false
O2D	OH	TYR- 155	2.67	162.3	H-Bond (Ligand Donor)	false
O3D	NZ	LYS- 159	2.8	146.8	H-Bond (Protein Donor)	false
O2D	NZ	LYS- 159	3.03	135.21	H-Bond (Protein Donor)	false
C5N	CB	PRO- 185	3.67	0	Hydrophobic	false
O7N	N	VAL- 188	2.78	160.54	H-Bond (Protein Donor)	false
N7N	O	VAL- 188	3.11	140.24	H-Bond (Ligand Donor)	false
C3N	CG2	VAL- 188	4.42	0	Hydrophobic	false
O1N	OG1	THR- 190	2.62	156.44	H-Bond (Protein Donor)	false
C2D	CD1	LEU- 192	4.13	0	Hydrophobic	false
O5B	O	HOH- 1024	3.19	179.95	H-Bond (Protein Donor)	false
