scPDB - 2z2w entry

Protein Data Bank Entry:

PDB ID : 2z2w

Resolution :2.220 Å

Experimental Method : X-ray

Deposition Date : 2007-05-29

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Wee1-like protein kinase
ID:	WEE1_HUMAN
AC:	P30291
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.10.2

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	45.621
Number of residues:	35
Including
Standard Amino Acids:	33
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.110	597.375

% Hydrophobic	% Polar
48.59	51.41
According to VolSite

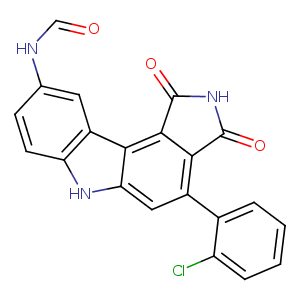

Ligand :

HET Code:	770
Formula:	C21H12ClN3O3
Molecular weight:	389.791 g/mol
DrugBank ID:	DB07226
Buried Surface Area:	65.95 %
Polar Surface area:	91.06 Å2

Number of
H-Bond Acceptors:	3
H-Bond Donors:	3
Rings:	5
Aromatic rings:	4
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
4.23507	54.4815	26.2721

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C17	CD1	ILE- 305	3.88	0	Hydrophobic	false
C18	CB	ILE- 305	3.74	0	Hydrophobic	false
C15	CD1	ILE- 305	3.63	0	Hydrophobic	false
CL1	CG1	VAL- 313	3.78	0	Hydrophobic	false
C8	CG2	VAL- 313	4.36	0	Hydrophobic	false
C1	CG1	VAL- 313	3.87	0	Hydrophobic	false
CL1	CB	ALA- 326	3.93	0	Hydrophobic	false
C4	CB	ALA- 326	3.74	0	Hydrophobic	false
C10	CD	LYS- 328	3.87	0	Hydrophobic	false
C9	CB	LYS- 328	3.65	0	Hydrophobic	false
C9	CG2	ILE- 374	4.2	0	Hydrophobic	false
CL1	CB	ASN- 376	4.11	0	Hydrophobic	false
O2	ND2	ASN- 376	3.11	143.82	H-Bond (Protein Donor)	false
N1	O	GLU- 377	2.64	135.79	H-Bond (Ligand Donor)	false
O1	N	CYS- 379	2.94	160.96	H-Bond (Protein Donor)	false
N3	O	CYS- 379	2.74	153.9	H-Bond (Ligand Donor)	false
C13	CE1	PHE- 433	3.38	0	Hydrophobic	false
C11	CB	ASP- 463	3.52	0	Hydrophobic	false
