scPDB - 2ybo entry

Protein Data Bank Entry:

PDB ID : 2ybo

Resolution :2.000 Å

Experimental Method : X-ray

Deposition Date : 2011-03-08

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Methyltransferase
ID:	P95417_PSEAI
AC:	P95417
Organism:	Pseudomonas aeruginosa
Reign:	Bacteria
TaxID:	287
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	17.001
Number of residues:	36
Including
Standard Amino Acids:	35
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.174	722.250

% Hydrophobic	% Polar
56.54	43.46
According to VolSite

Ligand :

HET Code:	SAH
Formula:	C14H20N6O5S
Molecular weight:	384.411 g/mol
DrugBank ID:	DB01752
Buried Surface Area:	78.06 %
Polar Surface area:	212.38 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
26.9117	20.3492	30.2768

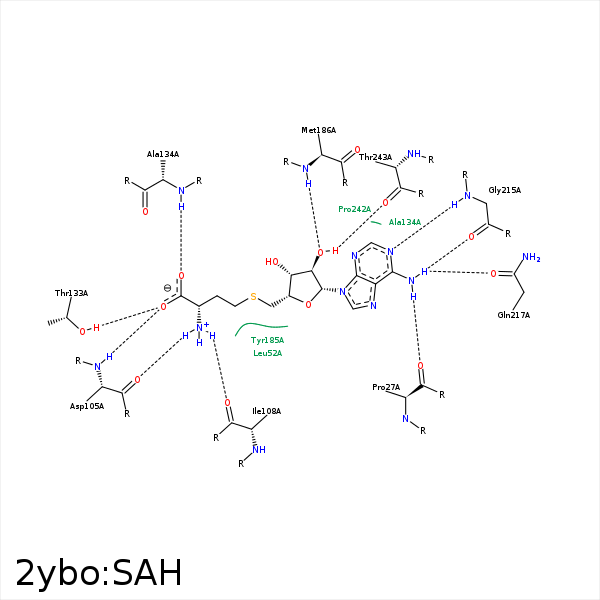

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N6	O	PRO- 27	2.76	139.11	H-Bond (Ligand Donor)	false
CG	CD1	LEU- 52	4.49	0	Hydrophobic	false
C5'	CD1	LEU- 52	3.5	0	Hydrophobic	false
C3'	CD2	LEU- 52	3.99	0	Hydrophobic	false
N	O	ASP- 105	3.07	142.87	H-Bond (Ligand Donor)	false
O	N	ASP- 105	3.2	177.59	H-Bond (Protein Donor)	false
SD	CB	PHE- 109	4.06	0	Hydrophobic	false
O	OG1	THR- 133	2.6	152.97	H-Bond (Protein Donor)	false
OXT	N	ALA- 134	2.7	156.97	H-Bond (Protein Donor)	false
C1'	CB	ALA- 134	4	0	Hydrophobic	false
SD	CD2	TYR- 185	4.12	0	Hydrophobic	false
C4'	CD2	TYR- 185	3.9	0	Hydrophobic	false
C1'	CD2	TYR- 185	3.75	0	Hydrophobic	false
CB	CD2	TYR- 185	3.5	0	Hydrophobic	false
O2'	N	MET- 186	2.91	175.27	H-Bond (Protein Donor)	false
C4'	CG	MET- 186	3.62	0	Hydrophobic	false
N6	O	GLY- 215	2.82	134.75	H-Bond (Ligand Donor)	false
N1	N	GLY- 215	2.79	133.25	H-Bond (Protein Donor)	false
N6	OE1	GLN- 217	2.9	125.98	H-Bond (Ligand Donor)	false
C2'	CB	PRO- 242	4.05	0	Hydrophobic	false
O2'	O	THR- 243	2.73	175.5	H-Bond (Ligand Donor)	false
C1'	CD1	LEU- 244	3.62	0	Hydrophobic	false
