1.290 Å
X-ray
2011-01-13
| Name: | Coagulation factor X |
|---|---|
| ID: | FA10_HUMAN |
| AC: | P00742 |
| Organism: | Homo sapiens |
| Reign: | Eukaryota |
| TaxID: | 9606 |
| EC Number: | 3.4.21.6 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 24.365 |
|---|---|
| Number of residues: | 36 |
| Including | |
| Standard Amino Acids: | 34 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 2 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 0.171 | 253.125 |
| % Hydrophobic | % Polar |
|---|---|
| 32.00 | 68.00 |
| According to VolSite | |

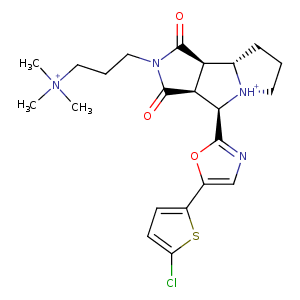

| HET Code: | FJD |
|---|---|
| Formula: | C22H29ClN4O3S |
| Molecular weight: | 465.009 g/mol |
| DrugBank ID: | - |
| Buried Surface Area: | 64.45 % |
| Polar Surface area: | 96.08 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 3 |
| H-Bond Donors: | 1 |
| Rings: | 5 |
| Aromatic rings: | 2 |
| Anionic atoms: | 0 |
| Cationic atoms: | 2 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 6 |
| X | Y | Z |
|---|---|---|
| -2.74516 | 10.1397 | 22.0377 |

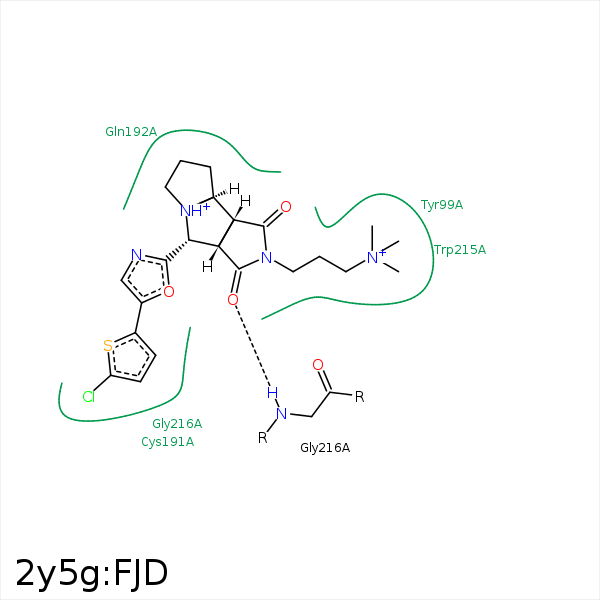

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C21 | CE2 | TYR- 99 | 3.89 | 0 | Hydrophobic |
| C5 | CE2 | TYR- 99 | 4.16 | 0 | Hydrophobic |
| CL1 | CB | ALA- 190 | 3.77 | 0 | Hydrophobic |
| C15 | CG | GLN- 192 | 4 | 0 | Hydrophobic |
| CL1 | CG1 | VAL- 213 | 3.65 | 0 | Hydrophobic |
| S1 | CG1 | VAL- 213 | 3.56 | 0 | Hydrophobic |
| C21 | CB | TRP- 215 | 3.89 | 0 | Hydrophobic |
| O13 | N | GLY- 216 | 3.14 | 162.67 | H-Bond (Protein Donor) |
| CL1 | CZ | TYR- 228 | 3.58 | 0 | Hydrophobic |
