Protein Data Bank Entry:

PDB ID : 2xtn

Resolution :1.900 Å

Experimental Method : X-ray

Deposition Date : 2010-10-11

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	GTPase IMAP family member 2
ID:	GIMA2_HUMAN
AC:	Q9UG22
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	22.641
Number of residues:	43
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	1
Water Molecules:	5
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.576	425.250

% Hydrophobic	% Polar
37.30	62.70
According to VolSite

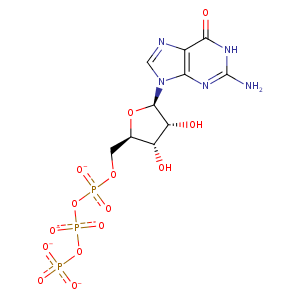

Ligand :

HET Code:	GTP
Formula:	C10H12N5O14P3
Molecular weight:	519.149 g/mol
DrugBank ID:	DB04137
Buried Surface Area:	68.04 %
Polar Surface area:	335.56 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	4
Rings:	3
Aromatic rings:	1
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
4.77931	15.8582	22.2734

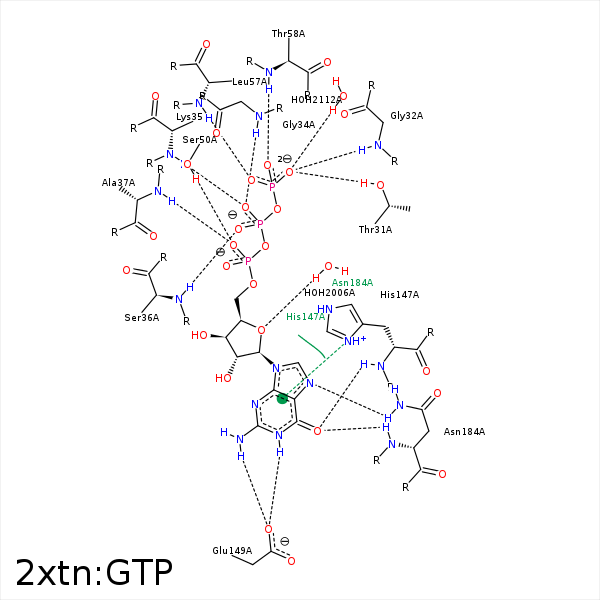

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3G	OG1	THR- 31	2.58	166.35	H-Bond (Protein Donor)	false
O3G	N	GLY- 32	3.04	144.64	H-Bond (Protein Donor)	false
O3B	N	GLY- 32	3.27	128.63	H-Bond (Protein Donor)	false
O2B	N	GLY- 34	2.9	146.05	H-Bond (Protein Donor)	false
O2B	N	LYS- 35	2.82	156.8	H-Bond (Protein Donor)	false
O1B	N	SER- 36	2.92	167.11	H-Bond (Protein Donor)	false
O2A	N	ALA- 37	2.91	138.33	H-Bond (Protein Donor)	false
O2A	OG	SER- 50	2.59	174.13	H-Bond (Protein Donor)	false
O1G	N	LEU- 57	2.72	172.16	H-Bond (Protein Donor)	false
O2G	N	THR- 58	3.05	159.22	H-Bond (Protein Donor)	false
O6	N	HIS- 147	2.8	144.68	H-Bond (Protein Donor)	false
N1	OE2	GLU- 149	2.67	138.04	H-Bond (Ligand Donor)	false
N2	OE2	GLU- 149	2.72	136.31	H-Bond (Ligand Donor)	false
N7	ND2	ASN- 184	2.97	170.16	H-Bond (Protein Donor)	false
O6	N	ASN- 184	3.08	162.29	H-Bond (Protein Donor)	false
O2G	MG	MG- 1232	2.09	0	Metal Acceptor	false
O1B	MG	MG- 1232	2.07	0	Metal Acceptor	false
O4'	O	HOH- 2006	3.15	163.25	H-Bond (Protein Donor)	false
O3G	O	HOH- 2112	2.69	179.97	H-Bond (Protein Donor)	false
