sc-PDB

List of CHEMBLId :

This value allows a number of roughly comparable measures of half-maximal response concentration/potency/affinity to be compared on a negative logarithmic scale (e.g., an IC50 measurement of 1nM would have a pChEMBL value of 9).

Uniprot Annotation

Name:	Succinate dehydrogenase iron-sulfur subunit	Succinate dehydrogenase cytochrome b556 subunit
ID:	SDHB_ECOLI	DHSC_ECOLI
AC:	P07014	P69054
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	1.3.5.1	/

---

Chains:

Chain Name:	Percentage of Residues within binding site
F	37 %
G	53 %
H	11 %

---

Ligand binding site composition:

B-Factor:	61.829
Number of residues:	21
Including
Standard Amino Acids:	19
Non Standard Amino Acids:	2
Water Molecules:	0
Cofactors:
Metals:

---

Cavity properties

Ligandability	Volume (Å3)
1.387	1289.250

% Hydrophobic	% Polar
61.52	38.48
According to VolSite

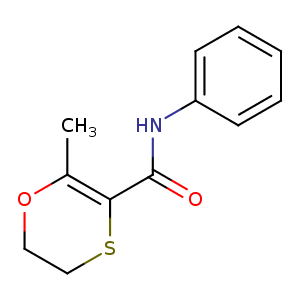

HET Code:	CBE
Formula:	C12H13NO2S
Molecular weight:	235.302 g/mol
DrugBank ID:	DB04657
Buried Surface Area:	65.21 %
Polar Surface area:	63.63 Å2

Number of
H-Bond Acceptors:	3
H-Bond Donors:	1
Rings:	2
Aromatic rings:	1
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

---

Mass center Coordinates

X	Y	Z
55.6624	-53.1503	-24.8682

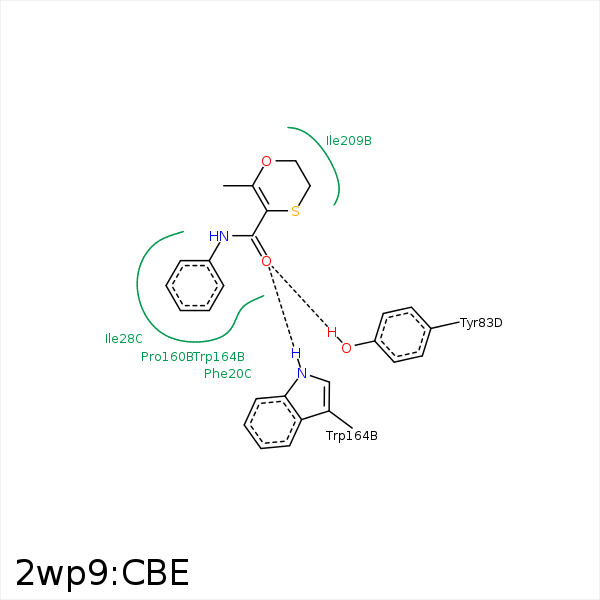

• 2D View
• 3D View
