scPDB - 2w06 entry

Protein Data Bank Entry:

PDB ID : 2w06

Resolution :2.040 Å

Experimental Method : X-ray

Deposition Date : 2008-08-08

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Cyclin-dependent kinase 2
ID:	CDK2_HUMAN
AC:	P24941
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.22

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	32.801
Number of residues:	35
Including
Standard Amino Acids:	32
Non Standard Amino Acids:	0
Water Molecules:	3
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.873	600.750

% Hydrophobic	% Polar
48.31	51.69
According to VolSite

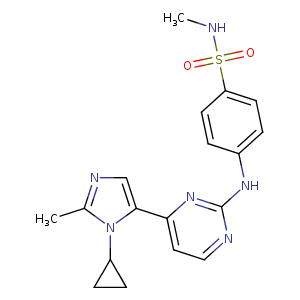

Ligand :

HET Code:	FRV
Formula:	C18H21N6O2S
Molecular weight:	385.463 g/mol
DrugBank ID:	DB07791
Buried Surface Area:	62.68 %
Polar Surface area:	111.42 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	3
Rings:	4
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
1.97048	29.0693	8.64789

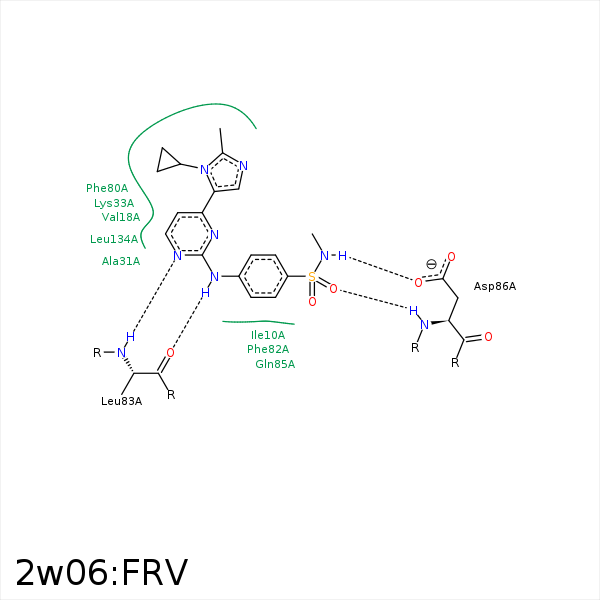

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C16	CG2	ILE- 10	4.46	0	Hydrophobic	false
C9	CG2	ILE- 10	3.53	0	Hydrophobic	false
C25	CG2	VAL- 18	4.25	0	Hydrophobic	false
C28	CG2	VAL- 18	3.78	0	Hydrophobic	false
C26	CG1	VAL- 18	3.72	0	Hydrophobic	false
C6	CB	ALA- 31	3.72	0	Hydrophobic	false
C26	CD	LYS- 33	4.24	0	Hydrophobic	false
C6	CG1	VAL- 64	4.5	0	Hydrophobic	false
C30	CD1	PHE- 80	3.54	0	Hydrophobic	false
N7	O	LEU- 83	2.68	123.59	H-Bond (Ligand Donor)	false
N4	N	LEU- 83	3.21	170.33	H-Bond (Protein Donor)	false
C10	CB	ASP- 86	3.99	0	Hydrophobic	false
O29	N	ASP- 86	3.11	163.23	H-Bond (Protein Donor)	false
N15	OD2	ASP- 86	2.87	132.21	H-Bond (Ligand Donor)	false
C6	CD1	LEU- 134	3.29	0	Hydrophobic	false
C9	CD2	LEU- 134	3.63	0	Hydrophobic	false
C30	CB	ALA- 144	4.02	0	Hydrophobic	false
