scPDB - 2vuu entry

Protein Data Bank Entry:

PDB ID : 2vuu

Resolution :2.800 Å

Experimental Method : X-ray

Deposition Date : 2008-05-30

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Nitrogen metabolite repression protein nmrA
ID:	NMRA_EMENI
AC:	Q5AU62
Organism:	Emericella nidulans
Reign:	Eukaryota
TaxID:	227321
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
D	100 %

Ligand binding site composition:

B-Factor:	42.724
Number of residues:	46
Including
Standard Amino Acids:	44
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.697	742.500

% Hydrophobic	% Polar
38.18	61.82
According to VolSite

Ligand :

HET Code:	NAP
Formula:	C21H25N7O17P3
Molecular weight:	740.381 g/mol
DrugBank ID:	DB03461
Buried Surface Area:	55.02 %
Polar Surface area:	405.54 Å2

Number of
H-Bond Acceptors:	21
H-Bond Donors:	5
Rings:	5
Aromatic rings:	3
Anionic atoms:	4
Cationic atoms:	1
Rule of Five Violation:	2
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
33.3389	-97.6263	200.329

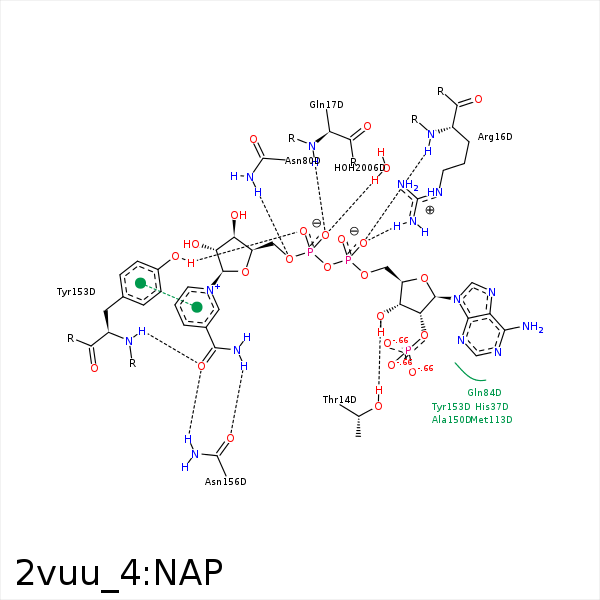

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3B	OD1	ASN- 12	3.42	165.43	H-Bond (Ligand Donor)	false
O3B	OG1	THR- 14	2.68	158.03	H-Bond (Protein Donor)	false
O1A	NH1	ARG- 16	3.13	126.65	H-Bond (Protein Donor)	false
O2A	NH1	ARG- 16	3.38	169.43	H-Bond (Protein Donor)	false
O2A	N	ARG- 16	3.07	159.05	H-Bond (Protein Donor)	false
O2N	N	GLN- 17	3.06	163.7	H-Bond (Protein Donor)	false
DuAr	DuAr	HIS- 37	3.96	0	Aromatic Face/Face	false
O5D	ND2	ASN- 80	3.09	148.73	H-Bond (Protein Donor)	false
O3D	O	THR- 81	3.37	157.38	H-Bond (Ligand Donor)	false
C5B	CG2	THR- 82	4.25	0	Hydrophobic	false
C5D	CG2	THR- 82	3.55	0	Hydrophobic	false
C5N	SD	MET- 113	3.87	0	Hydrophobic	false
C5N	CB	ALA- 150	3.66	0	Hydrophobic	false
O7N	N	TYR- 153	2.91	165.12	H-Bond (Protein Donor)	false
O7N	ND2	ASN- 156	2.67	159.36	H-Bond (Protein Donor)	false
N7N	OD1	ASN- 156	2.8	167.09	H-Bond (Ligand Donor)	false
O2N	O	HOH- 2006	3.17	179.99	H-Bond (Protein Donor)	false
