scPDB - 2uzn entry

Protein Data Bank Entry:

PDB ID : 2uzn

Resolution :2.300 Å

Experimental Method : X-ray

Deposition Date : 2007-04-30

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Cyclin-dependent kinase 2
ID:	CDK2_HUMAN
AC:	P24941
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.22

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	31.379
Number of residues:	31
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.145	729.000

% Hydrophobic	% Polar
48.61	51.39
According to VolSite

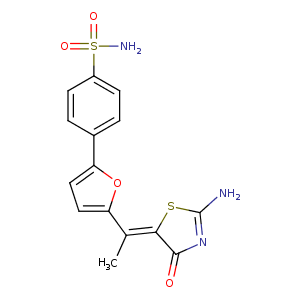

Ligand :

HET Code:	C96
Formula:	C15H14N3O4S2
Molecular weight:	364.419 g/mol
DrugBank ID:	DB07540
Buried Surface Area:	61.39 %
Polar Surface area:	161.66 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	3

Mass center Coordinates

X	Y	Z
1.63942	63.8445	8.64862

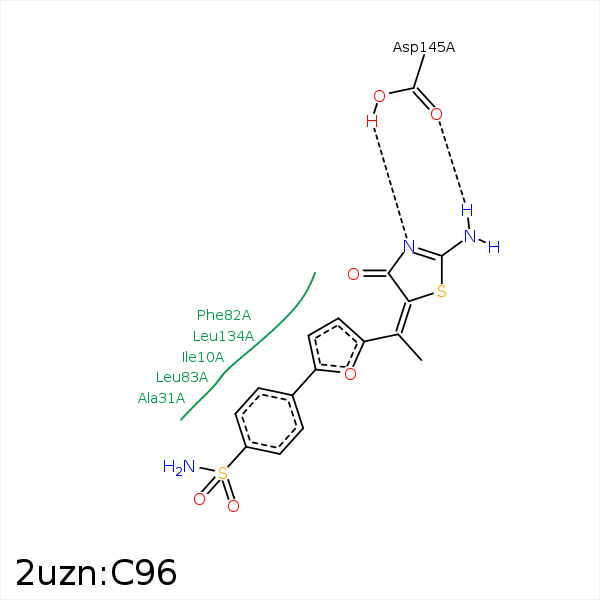

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C13	CD1	ILE- 10	4.34	0	Hydrophobic	false
C20	CB	ALA- 31	3.5	0	Hydrophobic	false
C20	CG1	VAL- 64	3.94	0	Hydrophobic	false
C20	CB	PHE- 80	3.38	0	Hydrophobic	false
C15	CB	ASP- 86	4.34	0	Hydrophobic	false
S1	CD1	LEU- 134	4.31	0	Hydrophobic	false
C20	CD1	LEU- 134	4.3	0	Hydrophobic	false
C14	CD2	LEU- 134	4.23	0	Hydrophobic	false
S1	CB	ALA- 144	4.38	0	Hydrophobic	false
N3	OD2	ASP- 145	2.91	147.32	H-Bond (Ligand Donor)	false
O1	OD1	ASP- 145	3.29	128.95	H-Bond (Protein Donor)	false
