scPDB - 2r3a entry

Protein Data Bank Entry:

PDB ID : 2r3a

Resolution :2.000 Å

Experimental Method : X-ray

Deposition Date : 2007-08-29

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Histone-lysine N-methyltransferase SUV39H2
ID:	SUV92_HUMAN
AC:	Q9H5I1
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.1.1.43

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	25.959
Number of residues:	32
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:	ZN

Cavity properties

Ligandability	Volume (Å3)
0.586	391.500

% Hydrophobic	% Polar
46.55	53.45
According to VolSite

Ligand :

HET Code:	SAM
Formula:	C15H23N6O5S
Molecular weight:	399.445 g/mol
DrugBank ID:	DB00118
Buried Surface Area:	71.71 %
Polar Surface area:	189.77 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	2
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
30.4499	39.2129	51.632

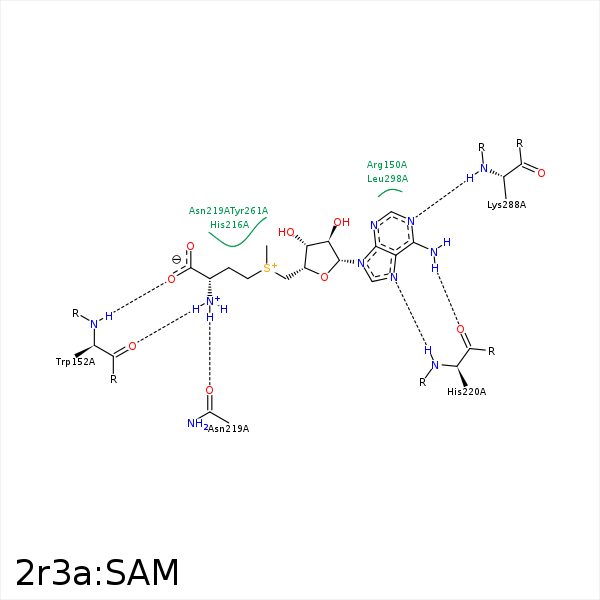

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N	O	TRP- 152	2.75	160.3	H-Bond (Ligand Donor)	false
O	N	TRP- 152	2.81	142.4	H-Bond (Protein Donor)	false
OXT	NZ	LYS- 189	3.91	0	Ionic (Protein Cationic)	false
C4'	CG	LYS- 189	3.94	0	Hydrophobic	false
SD	CG	LYS- 189	4.24	0	Hydrophobic	false
CE	CB	THR- 192	4.38	0	Hydrophobic	false
C5'	CB	THR- 192	3.98	0	Hydrophobic	false
C3'	CG2	THR- 192	4.19	0	Hydrophobic	false
CE	CE1	TYR- 193	3.4	0	Hydrophobic	false
N	OD1	ASN- 219	2.78	135.12	H-Bond (Ligand Donor)	false
N7	N	HIS- 220	3.11	150.97	H-Bond (Protein Donor)	false
N6	O	HIS- 220	2.88	156.05	H-Bond (Ligand Donor)	false
CE	CZ	TYR- 261	4.16	0	Hydrophobic	false
C5'	CE2	TYR- 261	3.69	0	Hydrophobic	false
N1	N	LYS- 288	2.84	169.85	H-Bond (Protein Donor)	false
C3'	CD1	LEU- 298	4.02	0	Hydrophobic	false
