scPDB - 2qzr entry

Protein Data Bank Entry:

PDB ID : 2qzr

Resolution :1.950 Å

Experimental Method : X-ray

Deposition Date : 2007-08-17

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Queuine tRNA-ribosyltransferase
ID:	TGT_ZYMMO
AC:	P28720
Organism:	Zymomonas mobilis subsp. mobilis
Reign:	Bacteria
TaxID:	264203
EC Number:	2.4.2.29

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	34.841
Number of residues:	33
Including
Standard Amino Acids:	32
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.321	405.000

% Hydrophobic	% Polar
44.17	55.83
According to VolSite

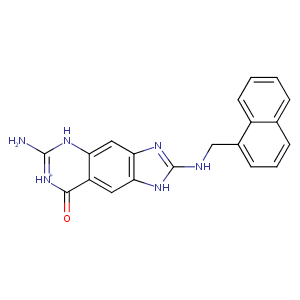

Ligand :

HET Code:	S79
Formula:	C20H16N6O
Molecular weight:	356.381 g/mol
DrugBank ID:	DB08512
Buried Surface Area:	53.85 %
Polar Surface area:	108.19 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	4
Rings:	5
Aromatic rings:	4
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	3

Mass center Coordinates

X	Y	Z
16.609	18.116	18.1554

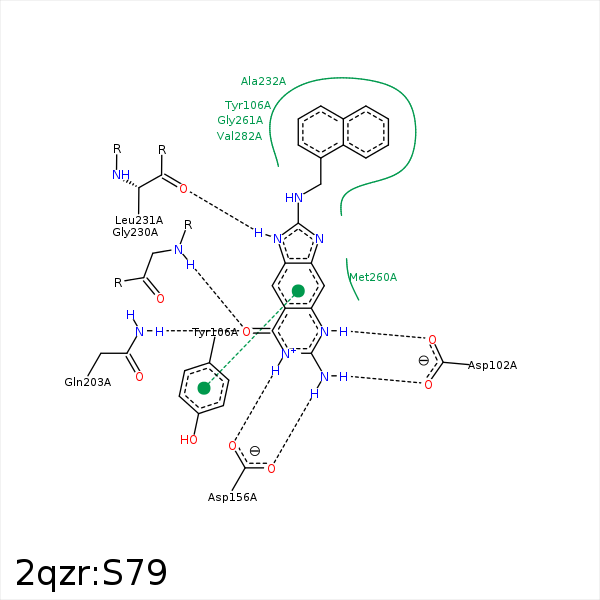

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N1	OD1	ASP- 102	2.93	151.11	H-Bond (Ligand Donor)	false
N2	OD1	ASP- 102	3.33	135.02	H-Bond (Ligand Donor)	false
N2	OD2	ASP- 102	2.97	167.15	H-Bond (Ligand Donor)	false
C4	CB	TYR- 106	3.42	0	Hydrophobic	false
N1	OD1	ASP- 156	2.82	137.14	H-Bond (Ligand Donor)	false
N1	OD2	ASP- 156	3.29	129.03	H-Bond (Ligand Donor)	false
C2	SG	CYS- 158	4.2	0	Hydrophobic	false
O1	NE2	GLN- 203	3.03	157.7	H-Bond (Protein Donor)	false
O1	N	GLY- 230	2.58	128.07	H-Bond (Protein Donor)	false
N5	O	LEU- 231	3.04	147.54	H-Bond (Ligand Donor)	false
C5	CB	MET- 260	4.03	0	Hydrophobic	false
C4	SD	MET- 260	3.78	0	Hydrophobic	false
C1	CB	MET- 260	4.28	0	Hydrophobic	false
C27	CG2	VAL- 282	4.01	0	Hydrophobic	false
