scPDB - 2qi3 entry

Protein Data Bank Entry:

PDB ID : 2qi3

Resolution :1.950 Å

Experimental Method : X-ray

Deposition Date : 2007-07-03

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Gag-Pol polyprotein
ID:	POL_HV1A2
AC:	P03369
Organism:	Human immunodeficiency virus type 1 group M subtype B
Reign:	Viruses
TaxID:	11685
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	45 %
B	55 %

Ligand binding site composition:

B-Factor:	19.137
Number of residues:	40
Including
Standard Amino Acids:	40
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.078	870.750

% Hydrophobic	% Polar
43.02	56.98
According to VolSite

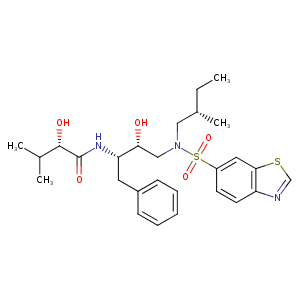

Ligand :

HET Code:	MZ5
Formula:	C27H37N3O5S2
Molecular weight:	547.730 g/mol
DrugBank ID:	-
Buried Surface Area:	60.9 %
Polar Surface area:	156.45 Å2

Number of
H-Bond Acceptors:	6
H-Bond Donors:	3
Rings:	3
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
19.0644	30.909	14.0845

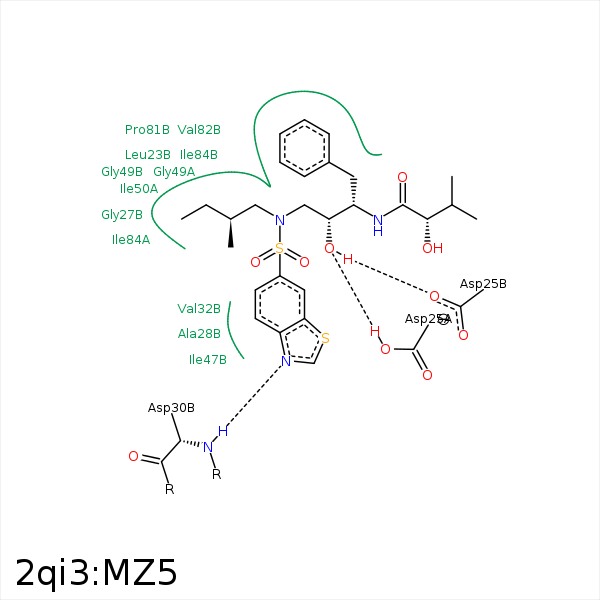

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C33	CD1	LEU- 23	3.91	0	Hydrophobic	false
C15	CD2	LEU- 23	3.91	0	Hydrophobic	false
O18	OD1	ASP- 25	2.52	167.16	H-Bond (Ligand Donor)	false
O18	OD1	ASP- 25	2.63	167.55	H-Bond (Protein Donor)	false
N20	O	GLY- 27	3.34	153.12	H-Bond (Ligand Donor)	false
C22	CB	ALA- 28	4.31	0	Hydrophobic	false
C7	CB	ALA- 28	3.3	0	Hydrophobic	false
N1	N	ASP- 30	3.2	143.4	H-Bond (Protein Donor)	false
C7	CG2	VAL- 32	3.8	0	Hydrophobic	false
C25	CB	ILE- 47	4.35	0	Hydrophobic	false
C3	CD1	ILE- 47	4.45	0	Hydrophobic	false
S1	CB	ILE- 47	3.9	0	Hydrophobic	false
C14	CG1	ILE- 50	4.25	0	Hydrophobic	false
C22	CD1	ILE- 50	4.02	0	Hydrophobic	false
C37	CB	ILE- 50	4.43	0	Hydrophobic	false
C35	CG	PRO- 81	3.83	0	Hydrophobic	false
C34	CG2	VAL- 82	3.95	0	Hydrophobic	false
C6	CG2	ILE- 84	4.44	0	Hydrophobic	false
C37	CD1	ILE- 84	3.96	0	Hydrophobic	false
C15	CG2	ILE- 84	3.98	0	Hydrophobic	false
