sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
2.350 Å
X-ray
2007-04-24
| Name: | Ferrochelatase, mitochondrial |
|---|---|
| ID: | HEMH_HUMAN |
| AC: | P22830 |
| Organism: | Homo sapiens |
| Reign: | Eukaryota |
| TaxID: | 9606 |
| EC Number: | 4.99.1.1 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| B | 100 % |
| B-Factor: | 29.726 |
|---|---|
| Number of residues: | 29 |
| Including | |
| Standard Amino Acids: | 28 |
| Non Standard Amino Acids: | 1 |
| Water Molecules: | 0 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.386 | 1208.250 |
| % Hydrophobic | % Polar |
|---|---|
| 49.44 | 50.56 |
| According to VolSite | |

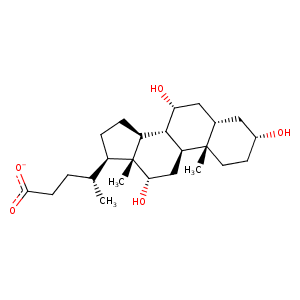

| HET Code: | CHD |
|---|---|
| Formula: | C24H39O5 |
| Molecular weight: | 407.563 g/mol |
| DrugBank ID: | DB02659 |
| Buried Surface Area: | 34.17 % |
| Polar Surface area: | 100.82 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 5 |
| H-Bond Donors: | 3 |
| Rings: | 4 |
| Aromatic rings: | 0 |
| Anionic atoms: | 1 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 4 |
| X | Y | Z |
|---|---|---|
| 36.802 | 17.5084 | 46.3742 |
Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C15 | SD | MET- 76 | 3.89 | 0 | Hydrophobic |
| C6 | CZ | PHE- 88 | 4.16 | 0 | Hydrophobic |
| C6 | CD2 | LEU- 89 | 4.13 | 0 | Hydrophobic |
| C19 | CD2 | LEU- 92 | 4.05 | 0 | Hydrophobic |
| C6 | CD1 | LEU- 92 | 3.51 | 0 | Hydrophobic |
| C19 | CZ | PHE- 93 | 3.7 | 0 | Hydrophobic |
| C18 | CD2 | LEU- 98 | 4.02 | 0 | Hydrophobic |
| C16 | CD2 | LEU- 98 | 4.1 | 0 | Hydrophobic |
| C23 | CD1 | LEU- 98 | 3.59 | 0 | Hydrophobic |
| C18 | CE | MET- 99 | 3.86 | 0 | Hydrophobic |
| C19 | CD1 | LEU- 115 | 4.26 | 0 | Hydrophobic |
| C3 | CD1 | ILE- 119 | 3.95 | 0 | Hydrophobic |
| O26 | OG | SER- 197 | 3.23 | 139.09 | H-Bond (Protein Donor) |
| C23 | CB | SER- 197 | 3.76 | 0 | Hydrophobic |
| C21 | CG | PRO- 266 | 4.04 | 0 | Hydrophobic |
| C1 | CG2 | VAL- 305 | 4.4 | 0 | Hydrophobic |
| C2 | CG1 | VAL- 305 | 3.98 | 0 | Hydrophobic |
| C11 | CG2 | VAL- 305 | 3.78 | 0 | Hydrophobic |
| C12 | CH2 | TRP- 310 | 4.16 | 0 | Hydrophobic |
| C21 | CZ3 | TRP- 310 | 3.7 | 0 | Hydrophobic |
