scPDB - 2i7p entry

Protein Data Bank Entry:

PDB ID : 2i7p

Resolution :2.050 Å

Experimental Method : X-ray

Deposition Date : 2006-08-31

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Pantothenate kinase 3
ID:	PANK3_HUMAN
AC:	Q9H999
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.1.33

Chains:

Chain Name:	Percentage of Residues within binding site
B	50 %
D	50 %

Ligand binding site composition:

B-Factor:	23.082
Number of residues:	36
Including
Standard Amino Acids:	36
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.641	945.000

% Hydrophobic	% Polar
37.86	62.14
According to VolSite

Ligand :

HET Code:	ACO
Formula:	C23H34N7O17P3S
Molecular weight:	805.539 g/mol
DrugBank ID:	-
Buried Surface Area:	63.69 %
Polar Surface area:	429.68 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	5
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	20

Mass center Coordinates

X	Y	Z
-22.8152	29.4659	47.5889

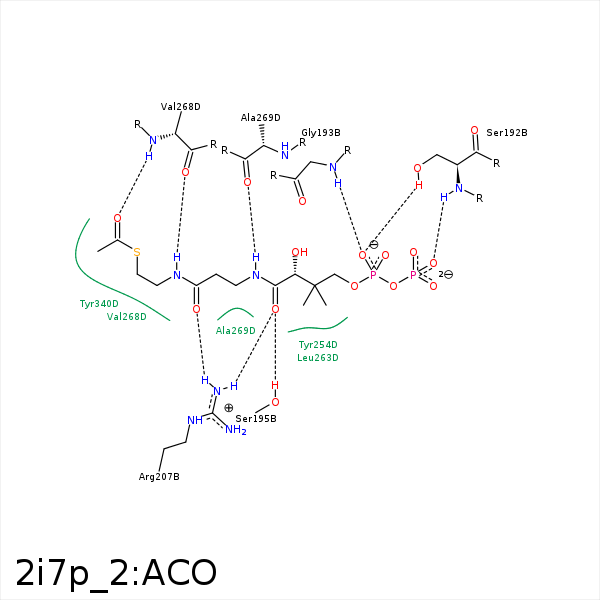

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1A	N	SER- 192	3.16	153.5	H-Bond (Protein Donor)	false
O4A	OG	SER- 192	2.93	161.04	H-Bond (Protein Donor)	false
O4A	N	GLY- 193	2.83	153.55	H-Bond (Protein Donor)	false
O9P	OG	SER- 195	2.76	145.91	H-Bond (Protein Donor)	false
O9P	NH2	ARG- 207	3.08	151.21	H-Bond (Protein Donor)	false
O5P	NH2	ARG- 207	2.81	150	H-Bond (Protein Donor)	false
C2P	CB	SER- 212	4.19	0	Hydrophobic	false
CDP	CG2	VAL- 250	4.21	0	Hydrophobic	false
CCP	CD1	ILE- 253	4.01	0	Hydrophobic	false
CDP	CD1	ILE- 253	4.31	0	Hydrophobic	false
CDP	CE2	TYR- 254	3.83	0	Hydrophobic	false
CEP	CE2	TYR- 258	3.99	0	Hydrophobic	false
CDP	CD1	LEU- 263	4.14	0	Hydrophobic	false
CEP	CD1	LEU- 263	4.41	0	Hydrophobic	false
C6P	CD1	LEU- 263	4.14	0	Hydrophobic	false
N4P	O	VAL- 268	2.95	160.44	H-Bond (Ligand Donor)	false
C2P	CB	VAL- 268	4.24	0	Hydrophobic	false
O	N	VAL- 268	2.98	168.31	H-Bond (Protein Donor)	false
CDP	CB	ALA- 269	3.87	0	Hydrophobic	false
N8P	O	ALA- 269	3.05	148.61	H-Bond (Ligand Donor)	false
S1P	CB	ASN- 299	4.05	0	Hydrophobic	false
CH3	CE2	TYR- 336	3.6	0	Hydrophobic	false
S1P	CE2	TYR- 340	3.78	0	Hydrophobic	false
CH3	CG	TYR- 340	3.91	0	Hydrophobic	false
S1P	CZ2	TRP- 341	3.41	0	Hydrophobic	false
