scPDB - 2fme entry

Protein Data Bank Entry:

PDB ID : 2fme

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2006-01-09

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Kinesin-like protein KIF11
ID:	KIF11_HUMAN
AC:	P52732
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	21.087
Number of residues:	28
Including
Standard Amino Acids:	28
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.581	347.625

% Hydrophobic	% Polar
52.43	47.57
According to VolSite

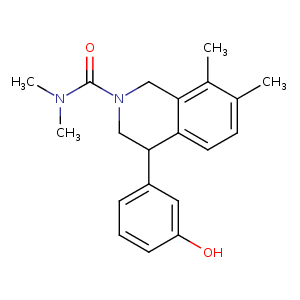

Ligand :

HET Code:	3QC
Formula:	C20H24N2O2
Molecular weight:	324.417 g/mol
DrugBank ID:	DB07064
Buried Surface Area:	75.04 %
Polar Surface area:	43.78 Å2

Number of
H-Bond Acceptors:	2
H-Bond Donors:	1
Rings:	3
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	1

Mass center Coordinates

X	Y	Z
23.104	11.3555	61.6215

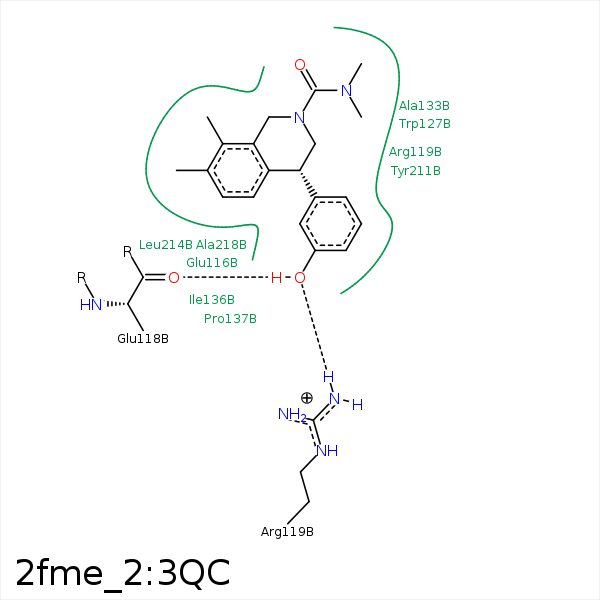

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C11	CB	GLU- 116	3.34	0	Hydrophobic	false
C13	CG	GLU- 116	3.71	0	Hydrophobic	false
O28	O	GLU- 118	2.68	157.54	H-Bond (Ligand Donor)	false
O28	NH1	ARG- 119	3.07	148.29	H-Bond (Protein Donor)	false
C20	CD	ARG- 119	3.49	0	Hydrophobic	false
C21	CB	TRP- 127	3.7	0	Hydrophobic	false
C20	CB	ASP- 130	4.44	0	Hydrophobic	false
C20	CB	ALA- 133	3.57	0	Hydrophobic	false
C12	CB	ILE- 136	3.88	0	Hydrophobic	false
C29	CD1	ILE- 136	3.93	0	Hydrophobic	false
C11	CG	PRO- 137	4.15	0	Hydrophobic	false
C22	CB	PRO- 137	3.63	0	Hydrophobic	false
C29	CD2	LEU- 160	4.25	0	Hydrophobic	false
C14	CB	LEU- 214	4.34	0	Hydrophobic	false
C11	CD1	LEU- 214	4.17	0	Hydrophobic	false
C23	CD1	LEU- 214	3.65	0	Hydrophobic	false
C13	CD2	LEU- 214	3.8	0	Hydrophobic	false
C33	CB	ALA- 218	4.26	0	Hydrophobic	false
C29	CD2	PHE- 239	3.85	0	Hydrophobic	false
