scPDB - 2bhh entry

Protein Data Bank Entry:

PDB ID : 2bhh

Resolution :2.600 Å

Experimental Method : X-ray

Deposition Date : 2005-01-11

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Cyclin-dependent kinase 2
ID:	CDK2_HUMAN
AC:	P24941
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.22

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	36.446
Number of residues:	31
Including
Standard Amino Acids:	31
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.657	546.750

% Hydrophobic	% Polar
42.59	57.41
According to VolSite

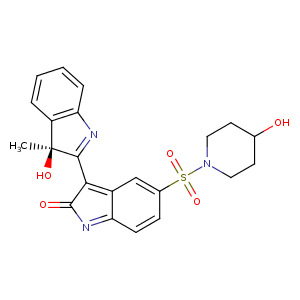

Ligand :

HET Code:	RYU
Formula:	C22H23N3O5S
Molecular weight:	441.500 g/mol
DrugBank ID:	DB03583
Buried Surface Area:	68.18 %
Polar Surface area:	127.35 Å2

Number of
H-Bond Acceptors:	6
H-Bond Donors:	4
Rings:	5
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
0.368	26.5426	8.53223

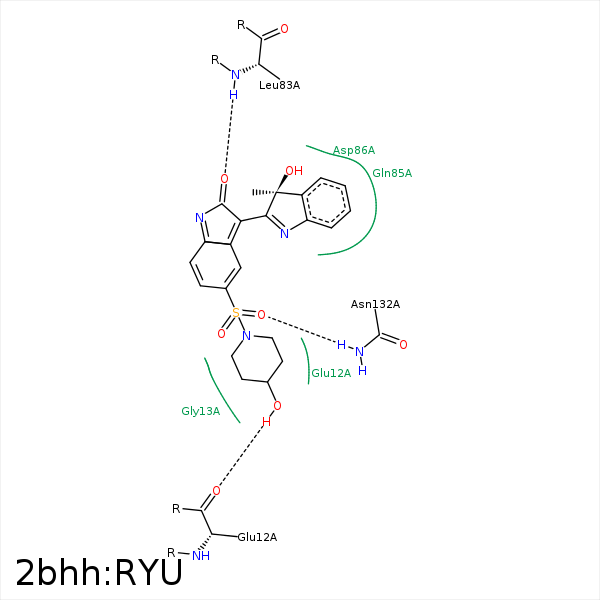

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4	CD1	ILE- 10	4.38	0	Hydrophobic	false
C7	CD1	ILE- 10	4.18	0	Hydrophobic	false
O23	O	GLU- 12	3.07	125.77	H-Bond (Ligand Donor)	false
C25	CG2	VAL- 18	3.41	0	Hydrophobic	false
O1	NZ	LYS- 33	3.33	142.95	H-Bond (Protein Donor)	false
O11	N	LEU- 83	2.74	171.14	H-Bond (Protein Donor)	false
C71	CB	ASP- 86	4.44	0	Hydrophobic	false
C1	CB	ASP- 86	4	0	Hydrophobic	false
C22	CB	GLN- 131	3.94	0	Hydrophobic	false
O19	ND2	ASN- 132	3.26	150.92	H-Bond (Protein Donor)	false
C71	CD2	LEU- 134	3.22	0	Hydrophobic	false
