Protein Data Bank Entry:

PDB ID : 1zkl

Resolution :1.670 Å

Experimental Method : X-ray

Deposition Date : 2005-05-03

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	High affinity cAMP-specific 3',5'-cyclic phosphodiesterase 7A
ID:	PDE7A_HUMAN
AC:	Q13946
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	3.1.4.53

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	17.442
Number of residues:	21
Including
Standard Amino Acids:	19
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.087	658.125

% Hydrophobic	% Polar
65.64	34.36
According to VolSite

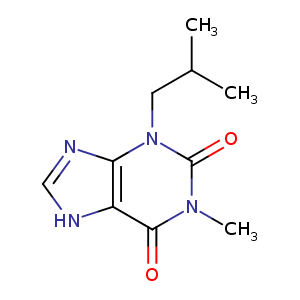

Ligand :

HET Code:	IBM
Formula:	C10H14N4O2
Molecular weight:	222.244 g/mol
DrugBank ID:	DB07954
Buried Surface Area:	54.06 %
Polar Surface area:	69.3 Å2

Number of
H-Bond Acceptors:	3
H-Bond Donors:	1
Rings:	2
Aromatic rings:	1
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
-0.55725	51.7546	22.2874

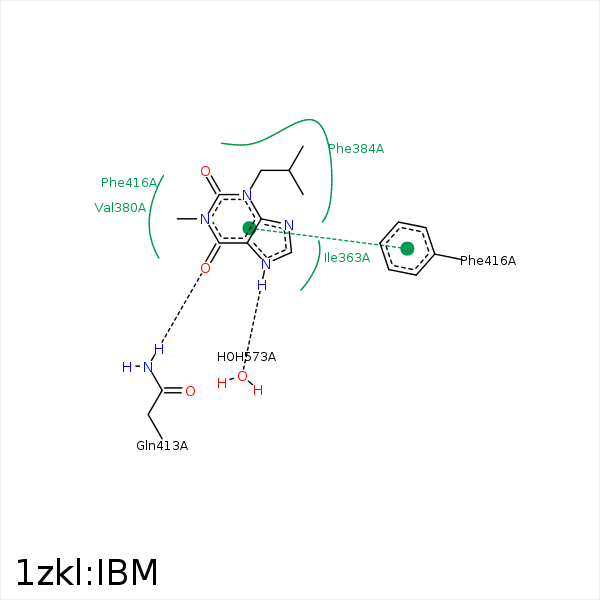

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C14	CG2	VAL- 380	4.38	0	Hydrophobic	false
C10	CE2	PHE- 384	3.76	0	Hydrophobic	false
C13	CZ	PHE- 384	3.29	0	Hydrophobic	false
C10	CG2	ILE- 412	3.5	0	Hydrophobic	false
O6	NE2	GLN- 413	3.12	145.38	H-Bond (Protein Donor)	false
C10	CB	PHE- 416	3.54	0	Hydrophobic	false
C11	CE1	PHE- 416	3.92	0	Hydrophobic	false
N7	O	HOH- 573	2.78	158.96	H-Bond (Ligand Donor)	false
