Protein Data Bank Entry:

PDB ID : 1yw1

Resolution :2.810 Å

Experimental Method : X-ray

Deposition Date : 2005-02-16

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Putative monooxygenase MoxC
ID:	MOXC_BACSU
AC:	O34974
Organism:	Bacillus subtilis
Reign:	Bacteria
TaxID:	224308
EC Number:	1.14

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	54.663
Number of residues:	34
Including
Standard Amino Acids:	33
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.127	870.750

% Hydrophobic	% Polar
46.90	53.10
According to VolSite

Ligand :

HET Code:	FMN
Formula:	C17H19N4O9P
Molecular weight:	454.328 g/mol
DrugBank ID:	DB03247
Buried Surface Area:	56.13 %
Polar Surface area:	217.05 Å2

Number of
H-Bond Acceptors:	12
H-Bond Donors:	4
Rings:	3
Aromatic rings:	1
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
-8.88571	61.7575	16.9683

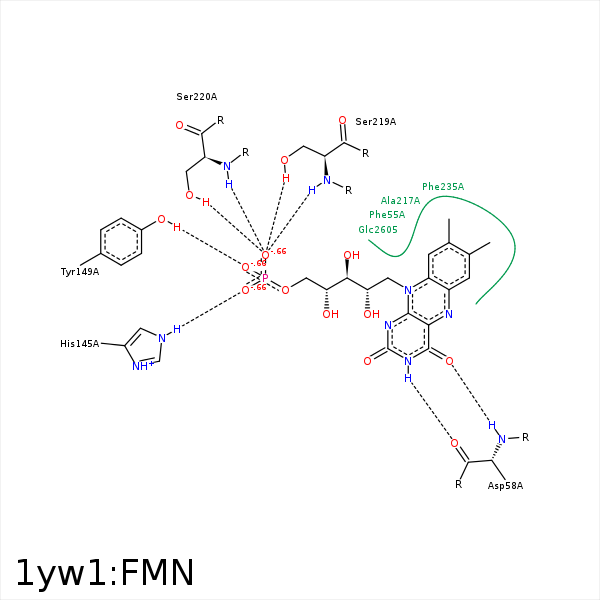

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N3	O	ASP- 58	2.91	150.7	H-Bond (Ligand Donor)	false
O4	N	ASP- 58	3.05	155.2	H-Bond (Protein Donor)	false
O2	NE2	GLN- 130	3.41	138.96	H-Bond (Protein Donor)	false
O1P	NE2	HIS- 145	3.28	136.07	H-Bond (Protein Donor)	false
O3P	NE2	HIS- 145	2.99	160.26	H-Bond (Protein Donor)	false
C9	CB	ALA- 217	3.78	0	Hydrophobic	false
C2'	CB	ALA- 217	3.74	0	Hydrophobic	false
C4'	CB	SER- 219	3.98	0	Hydrophobic	false
O2P	OG	SER- 219	3.35	160.37	H-Bond (Protein Donor)	false
O1P	OG	SER- 220	3.35	130.63	H-Bond (Protein Donor)	false
O2P	OG	SER- 220	3.26	146.95	H-Bond (Protein Donor)	false
O2P	N	SER- 220	2.58	167.49	H-Bond (Protein Donor)	false
C7M	CB	PHE- 235	3.35	0	Hydrophobic	false
C8	CB	PHE- 235	3.89	0	Hydrophobic	false
C7M	CG1	ILE- 387	4.42	0	Hydrophobic	false
