scPDB - 1xdu entry

Protein Data Bank Entry:

PDB ID : 1xdu

Resolution :2.700 Å

Experimental Method : X-ray

Deposition Date : 2004-09-08

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Aclacinomycin 10-hydroxylase RdmB
ID:	RDMB_STREF
AC:	Q54527
Organism:	Streptomyces purpurascens
Reign:	Bacteria
TaxID:	1924
EC Number:	4.1.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	27.302
Number of residues:	34
Including
Standard Amino Acids:	33
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.289	874.125

% Hydrophobic	% Polar
59.85	40.15
According to VolSite

Ligand :

HET Code:	SFG
Formula:	C15H24N7O5
Molecular weight:	382.395 g/mol
DrugBank ID:	DB01910
Buried Surface Area:	66.33 %
Polar Surface area:	214.71 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	5
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	2
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
10.2874	61.9098	43.3467

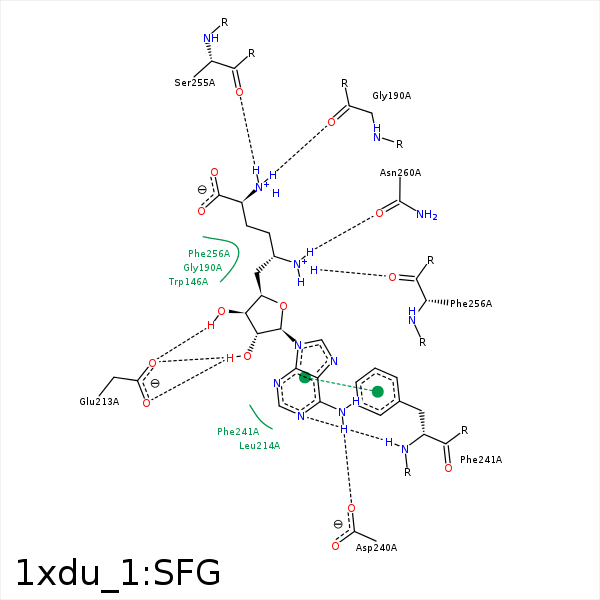

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C5'	CZ2	TRP- 146	4.03	0	Hydrophobic	false
C3'	CE3	TRP- 146	3.6	0	Hydrophobic	false
OXT	OH	TYR- 171	3.15	124.08	H-Bond (Protein Donor)	false
N	O	GLY- 190	2.87	166.42	H-Bond (Ligand Donor)	false
O3'	OE2	GLU- 213	2.79	158.99	H-Bond (Ligand Donor)	false
O2'	OE2	GLU- 213	3.02	130.56	H-Bond (Ligand Donor)	false
N6	OD1	ASP- 240	2.87	163.77	H-Bond (Ligand Donor)	false
C1'	CE2	PHE- 241	4.16	0	Hydrophobic	false
N1	N	PHE- 241	3.11	168.97	H-Bond (Protein Donor)	false
DuAr	DuAr	PHE- 241	3.36	0	Aromatic Face/Face	false
N	O	SER- 255	2.56	152.88	H-Bond (Ligand Donor)	false
CB	CB	PHE- 256	4.22	0	Hydrophobic	false
NE	O	PHE- 256	2.67	157.82	H-Bond (Ligand Donor)	false
CB	CG2	VAL- 257	4.21	0	Hydrophobic	false
C5'	CG2	VAL- 257	4.49	0	Hydrophobic	false
NE	OD1	ASN- 260	2.99	140.86	H-Bond (Ligand Donor)	false
