Protein Data Bank Entry:

PDB ID : 1xah

Resolution :2.200 Å

Experimental Method : X-ray

Deposition Date : 2004-08-25

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	3-dehydroquinate synthase
ID:	AROB_STAAR
AC:	Q6GGU4
Organism:	Staphylococcus aureus
Reign:	Bacteria
TaxID:	282458
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	98 %
B	2 %

Ligand binding site composition:

B-Factor:	44.163
Number of residues:	60
Including
Standard Amino Acids:	55
Non Standard Amino Acids:	1
Water Molecules:	4
Cofactors:
Metals:	ZN

Cavity properties

Ligandability	Volume (Å3)
0.871	1623.375

% Hydrophobic	% Polar
39.92	60.08
According to VolSite

Ligand :

HET Code:	NAD
Formula:	C21H26N7O14P2
Molecular weight:	662.417 g/mol
DrugBank ID:	-
Buried Surface Area:	69.85 %
Polar Surface area:	343.54 Å2

Number of
H-Bond Acceptors:	18
H-Bond Donors:	6
Rings:	5
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	1
Rule of Five Violation:	3
Rotatable Bonds:	11

Mass center Coordinates

X	Y	Z
62.0892	23.0546	15.1344

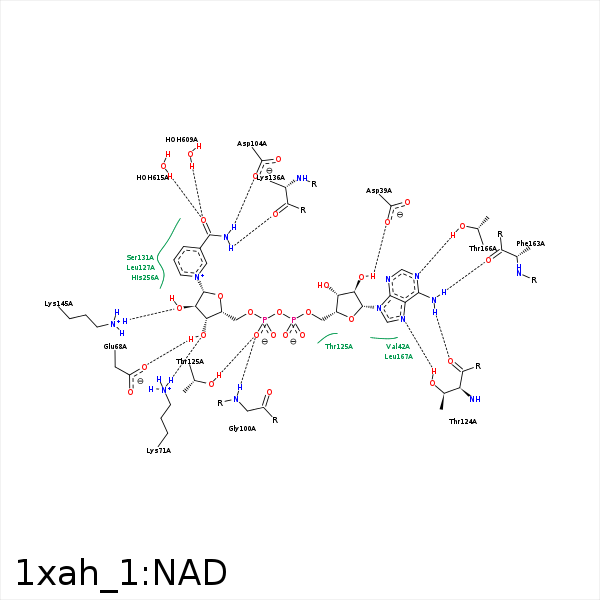

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O2B	OD2	ASP- 39	2.96	158	H-Bond (Ligand Donor)	false
O2B	OD1	ASP- 39	3.11	126.19	H-Bond (Ligand Donor)	false
C2B	CG2	VAL- 42	4.41	0	Hydrophobic	false
O3D	OE2	GLU- 68	2.64	163.97	H-Bond (Ligand Donor)	false
O3D	NZ	LYS- 71	3.29	174.08	H-Bond (Protein Donor)	false
O1N	N	GLY- 100	2.83	165.71	H-Bond (Protein Donor)	false
O1A	N	ALA- 101	3.29	143.84	H-Bond (Protein Donor)	false
N7N	OD2	ASP- 104	3.09	148.67	H-Bond (Ligand Donor)	false
N7A	OG1	THR- 124	2.71	153.28	H-Bond (Protein Donor)	false
N6A	O	THR- 124	2.94	128.55	H-Bond (Ligand Donor)	false
O1N	OG1	THR- 125	2.83	161.61	H-Bond (Protein Donor)	false
C5D	CD1	LEU- 127	4.09	0	Hydrophobic	false
C5N	CD2	LEU- 127	3.93	0	Hydrophobic	false
C3N	CB	SER- 131	3.55	0	Hydrophobic	false
N7N	O	LYS- 136	2.86	137.42	H-Bond (Ligand Donor)	false
O2D	NZ	LYS- 145	2.54	168.95	H-Bond (Protein Donor)	false
O2D	OD1	ASN- 146	3.39	121.74	H-Bond (Ligand Donor)	false
N6A	O	PHE- 163	2.67	143.65	H-Bond (Ligand Donor)	false
N6A	OG1	THR- 166	3.5	129.01	H-Bond (Ligand Donor)	false
N1A	OG1	THR- 166	2.78	162.31	H-Bond (Protein Donor)	false
C4B	CG	GLN- 171	4.2	0	Hydrophobic	false
C5D	CB	HIS- 256	4.19	0	Hydrophobic	false
O7N	O	HOH- 609	2.82	166.47	H-Bond (Protein Donor)	false
O7N	O	HOH- 615	2.73	120.81	H-Bond (Protein Donor)	false
