Protein Data Bank Entry:

PDB ID : 1w7k

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2004-09-06

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Dihydrofolate synthase/folylpolyglutamate synthase
ID:	FOLC_ECOLI
AC:	P08192
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	6.3.2.12

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	16.530
Number of residues:	38
Including
Standard Amino Acids:	33
Non Standard Amino Acids:	3
Water Molecules:	2
Cofactors:
Metals:	MG MG

Cavity properties

Ligandability	Volume (Å3)
1.157	1309.500

% Hydrophobic	% Polar
50.26	49.74
According to VolSite

Ligand :

HET Code:	ADP
Formula:	C10H12N5O10P2
Molecular weight:	424.177 g/mol
DrugBank ID:	-
Buried Surface Area:	76.08 %
Polar Surface area:	260.7 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
7.71811	6.67778	34.591

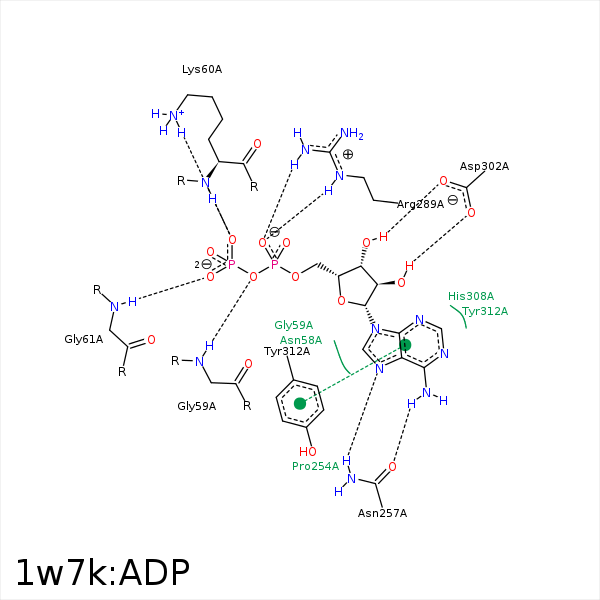

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C1'	CB	ASN- 58	4.15	0	Hydrophobic	false
O3A	N	GLY- 59	2.7	132.83	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 60	2.6	175.98	H-Bond (Protein Donor)	false
O1B	N	LYS- 60	3.04	163.2	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 60	2.6	0	Ionic (Protein Cationic)	false
O3B	N	GLY- 61	2.9	153.92	H-Bond (Protein Donor)	false
O1A	N	THR- 62	3.36	147.54	H-Bond (Protein Donor)	false
N7	ND2	ASN- 257	3.01	162.7	H-Bond (Protein Donor)	false
N6	OD1	ASN- 257	3.19	175.52	H-Bond (Ligand Donor)	false
O2A	NH2	ARG- 289	3.25	145.35	H-Bond (Protein Donor)	false
O2A	NE	ARG- 289	3.05	161.91	H-Bond (Protein Donor)	false
O2A	CZ	ARG- 289	3.62	0	Ionic (Protein Cationic)	false
C5'	CG	ARG- 289	4.29	0	Hydrophobic	false
C3'	CG	ARG- 289	4.18	0	Hydrophobic	false
O2'	OD2	ASP- 302	2.73	142.09	H-Bond (Ligand Donor)	false
O2'	OD1	ASP- 302	3.4	157.18	H-Bond (Ligand Donor)	false
C5'	CG2	VAL- 303	3.88	0	Hydrophobic	false
C4'	CB	ALA- 309	4.33	0	Hydrophobic	false
C1'	CB	ALA- 309	3.33	0	Hydrophobic	false
C2'	CD2	TYR- 312	4.4	0	Hydrophobic	false
O3B	MG	MG- 1423	2.28	0	Metal Acceptor	false
