scPDB - 1vgq entry

Protein Data Bank Entry:

PDB ID : 1vgq

Resolution :2.130 Å

Experimental Method : X-ray

Deposition Date : 2004-04-28

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Formyl-CoA:oxalate CoA-transferase
ID:	FCTA_OXAFO
AC:	O06644
Organism:	Oxalobacter formigenes
Reign:	Bacteria
TaxID:	847
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	10 %
B	90 %

Ligand binding site composition:

B-Factor:	27.954
Number of residues:	50
Including
Standard Amino Acids:	48
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.079	421.875

% Hydrophobic	% Polar
43.20	56.80
According to VolSite

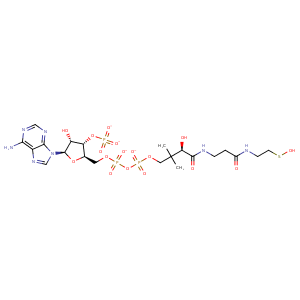

Ligand :

HET Code:	CAO
Formula:	C21H32N7O17P3S
Molecular weight:	779.502 g/mol
DrugBank ID:	DB01846
Buried Surface Area:	63.39 %
Polar Surface area:	432.84 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	6
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	19

Mass center Coordinates

X	Y	Z
-36.5616	25.3813	-17.7073

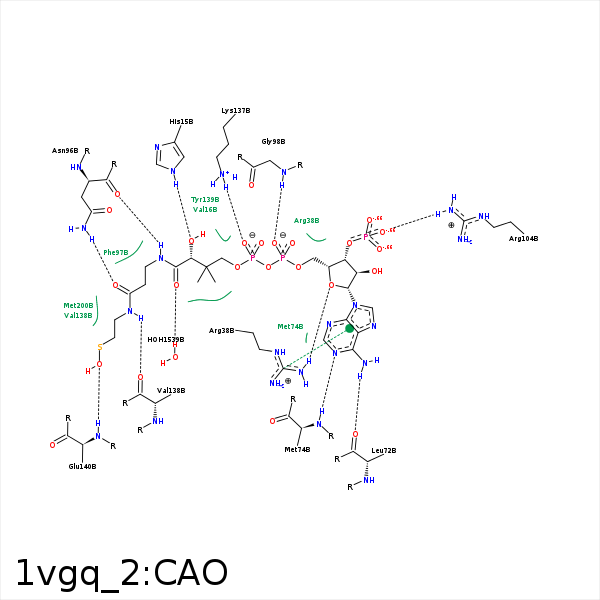

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
OAP	NE2	HIS- 15	2.98	145.24	H-Bond (Protein Donor)	false
CDP	CG2	VAL- 16	4.16	0	Hydrophobic	false
C2P	CB	VAL- 16	4.36	0	Hydrophobic	false
S1P	CG1	VAL- 16	3.39	0	Hydrophobic	false
S1P	CB	GLN- 17	3.64	0	Hydrophobic	false
C2P	CB	ALA- 18	3.5	0	Hydrophobic	false
O4B	NH1	ARG- 38	3.46	134.8	H-Bond (Protein Donor)	false
O4B	NH2	ARG- 38	3.21	143.63	H-Bond (Protein Donor)	false
N6A	O	LEU- 72	2.92	170.5	H-Bond (Ligand Donor)	false
N1A	N	MET- 74	3.19	160.22	H-Bond (Protein Donor)	false
O9A	NZ	LYS- 75	3.48	122.09	H-Bond (Protein Donor)	false
O9A	NZ	LYS- 75	3.48	0	Ionic (Protein Cationic)	false
N8P	O	ASN- 96	3	146.68	H-Bond (Ligand Donor)	false
O5P	ND2	ASN- 96	2.83	149.53	H-Bond (Protein Donor)	false
O1A	N	GLY- 98	2.97	134.63	H-Bond (Protein Donor)	false
C3B	CB	ALA- 101	3.89	0	Hydrophobic	false
O8A	NH1	ARG- 104	3.23	175.12	H-Bond (Protein Donor)	false
C2B	CE	MET- 105	4.24	0	Hydrophobic	false
C6P	CG1	VAL- 124	4.39	0	Hydrophobic	false
O2A	NZ	LYS- 137	3.1	125.89	H-Bond (Protein Donor)	false
O4A	NZ	LYS- 137	2.85	139.22	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 137	3.1	0	Ionic (Protein Cationic)	false
O4A	NZ	LYS- 137	2.85	0	Ionic (Protein Cationic)	false
CEP	CB	LYS- 137	3.78	0	Hydrophobic	false
O9P	N	VAL- 138	3.41	163.34	H-Bond (Protein Donor)	false
N4P	O	VAL- 138	2.87	159.05	H-Bond (Ligand Donor)	false
CCP	CZ	TYR- 139	4.38	0	Hydrophobic	false
CDP	CE2	TYR- 139	4.01	0	Hydrophobic	false
CEP	CE1	TYR- 139	4.15	0	Hydrophobic	false
O1P	N	GLU- 140	3.35	163.26	H-Bond (Protein Donor)	false
S1P	CB	ALA- 169	3.63	0	Hydrophobic	false
C6P	SD	MET- 200	3.57	0	Hydrophobic	false
C2P	CE	MET- 200	4.19	0	Hydrophobic	false
O9P	O	HOH- 1539	2.78	151.17	H-Bond (Protein Donor)	false
