scPDB - 1uyc entry

Protein Data Bank Entry:

PDB ID : 1uyc

Resolution :2.000 Å

Experimental Method : X-ray

Deposition Date : 2004-03-02

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Heat shock protein HSP 90-alpha
ID:	HS90A_HUMAN
AC:	P07900
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	31.145
Number of residues:	33
Including
Standard Amino Acids:	31
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.313	610.875

% Hydrophobic	% Polar
54.70	45.30
According to VolSite

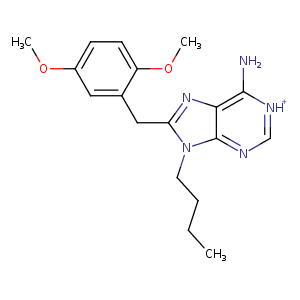

Ligand :

HET Code:	PU7
Formula:	C18H23N5O2
Molecular weight:	341.408 g/mol
DrugBank ID:	DB02359
Buried Surface Area:	60.04 %
Polar Surface area:	88.08 Å2

Number of
H-Bond Acceptors:	6
H-Bond Donors:	1
Rings:	3
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
3.03676	10.9416	24.6789

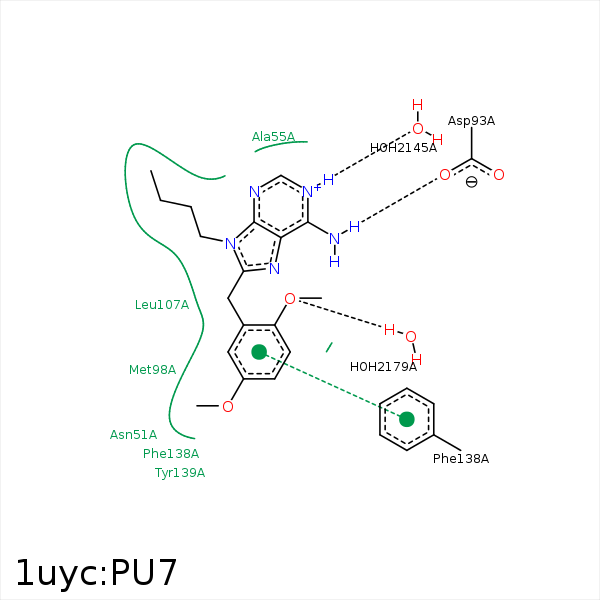

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N5	OD2	ASP- 93	2.82	162.67	H-Bond (Ligand Donor)	false
C15	SD	MET- 98	3.94	0	Hydrophobic	false
C2	SD	MET- 98	3.97	0	Hydrophobic	false
C8	CD2	LEU- 103	3.91	0	Hydrophobic	false
C19	CD1	LEU- 107	4.49	0	Hydrophobic	false
C15	CD1	LEU- 107	3.41	0	Hydrophobic	false
C16	CD2	LEU- 107	4.08	0	Hydrophobic	false
C3	CD1	LEU- 107	3.58	0	Hydrophobic	false
C19	CB	ALA- 111	3.84	0	Hydrophobic	false
C8	CZ	PHE- 138	3.91	0	Hydrophobic	false
C1	CB	PHE- 138	3.56	0	Hydrophobic	false
C6	CB	PHE- 138	3.48	0	Hydrophobic	false
C19	CE2	TYR- 139	3.88	0	Hydrophobic	false
C8	CG2	VAL- 150	3.8	0	Hydrophobic	false
C8	CD2	TRP- 162	3.48	0	Hydrophobic	false
N3	O	HOH- 2145	2.76	148.76	H-Bond (Ligand Donor)	false
O20	O	HOH- 2179	2.83	150.66	H-Bond (Protein Donor)	false
