scPDB - 1tlc entry

Protein Data Bank Entry:

PDB ID : 1tlc

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 1995-03-07

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Thymidylate synthase
ID:	TYSY_ECOLI
AC:	P0A884
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	27.326
Number of residues:	34
Including
Standard Amino Acids:	32
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.155	887.625

% Hydrophobic	% Polar
46.77	53.23
According to VolSite

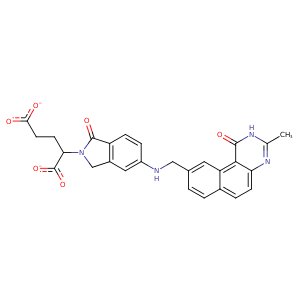

Ligand :

HET Code:	F89
Formula:	C27H22N4O6
Molecular weight:	498.487 g/mol
DrugBank ID:	-
Buried Surface Area:	65.25 %
Polar Surface area:	154.06 Å2

Number of
H-Bond Acceptors:	8
H-Bond Donors:	2
Rings:	5
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
46.39	40.8428	21.2357

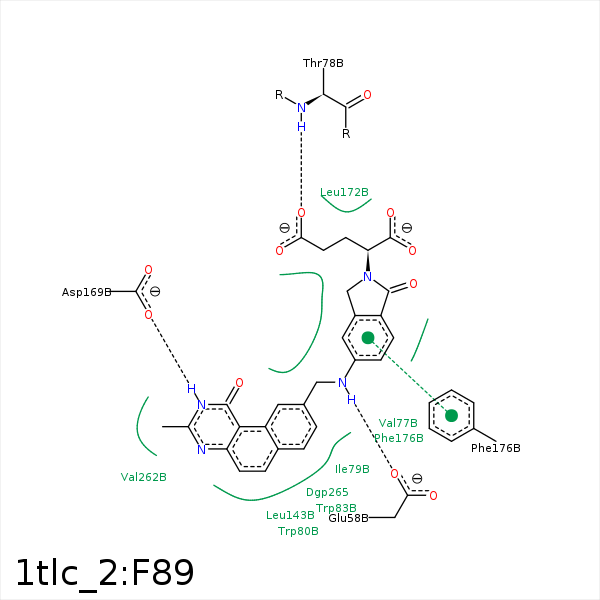

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C17	CB	SER- 54	3.67	0	Hydrophobic	false
N12	OE1	GLU- 58	2.91	158.52	H-Bond (Ligand Donor)	false
C18	CB	GLU- 58	4.42	0	Hydrophobic	false
C17	CG2	VAL- 77	3.74	0	Hydrophobic	false
OE1	N	THR- 78	2.66	151.89	H-Bond (Protein Donor)	false
C15	CB	ILE- 79	3.91	0	Hydrophobic	false
CB	CD1	ILE- 79	4.27	0	Hydrophobic	false
CG	CB	ILE- 79	3.82	0	Hydrophobic	false
C6A	CG1	ILE- 79	3.52	0	Hydrophobic	false
C7	CG2	ILE- 79	3.64	0	Hydrophobic	false
C6A	CG1	ILE- 79	3.52	0	Hydrophobic	false
C16	CG2	ILE- 79	4.29	0	Hydrophobic	false
C13	CG2	ILE- 79	4.1	0	Hydrophobic	false
C7	CE2	TRP- 80	3.46	0	Hydrophobic	false
C5	CZ3	TRP- 83	3.24	0	Hydrophobic	false
C6	CD2	LEU- 143	4.33	0	Hydrophobic	false
N2	OD2	ASP- 169	2.8	167.12	H-Bond (Ligand Donor)	false
C11	CB	PHE- 176	3.73	0	Hydrophobic	false
C13	CB	PHE- 176	3.72	0	Hydrophobic	false
DuAr	DuAr	PHE- 176	3.67	0	Aromatic Face/Face	false
C3M	CE2	TYR- 209	4	0	Hydrophobic	false
C3M	CG1	VAL- 262	3.99	0	Hydrophobic	false
C3M	CB	ALA- 263	4.22	0	Hydrophobic	false
